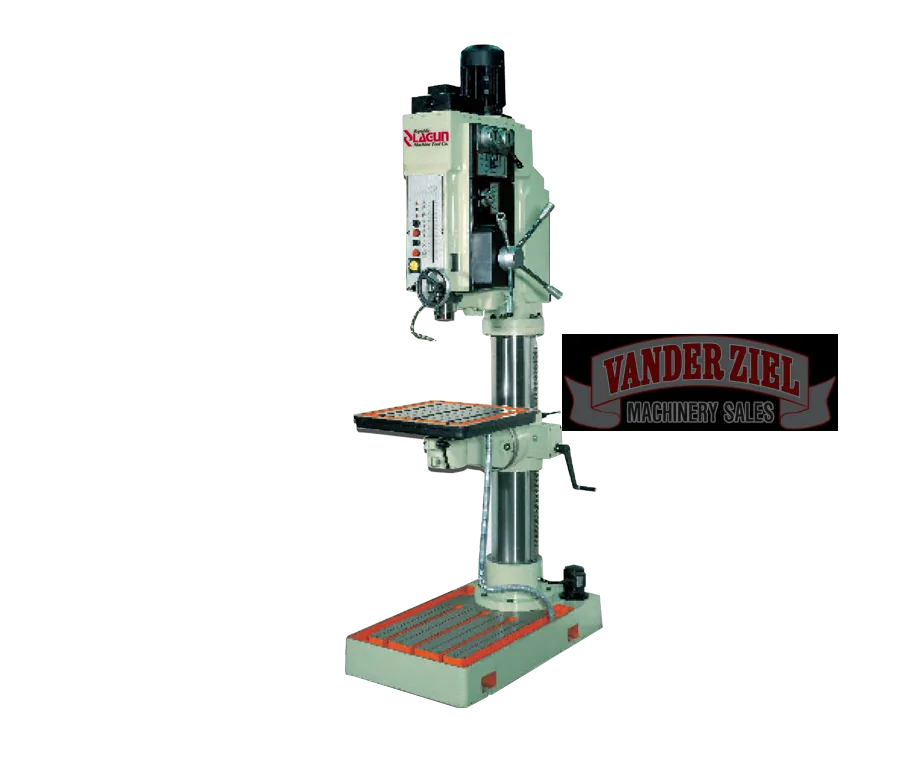

Lagun TCE Floor Drill - NEW

SKU #4205001

Capacity
Maximum Drilling Capacity in Steel	2.75"
Maximum Drilling Capacity in Cast Iron	2.95"
Maximum Tapping Capacity in Steel	2.36"
Morse taper No.	5
Maximum Drilling Depth	11.81"
Maximum Tapping Depth	11.81"
Motor
Main Motor	7.5 hp
Standard Speed 50 Hz-1,500 RPM- Optional 1,000 RPM- Optional 750 RPM	35 - 1,238 RPM24 - 169 RPM17 - 620 RPM
Drilling Feed Number	3
Drilling Feed Range	0.0019" - 0.0039" - 0.0059" - 0.0078" - 0.0137" - 0.0196"
Motor Pump Cooling	0.20 hp
Weights
Weight Admitted by Worktable	716.50 lb
Approximate Machine Weight	2,535.30 lb
Packaging Data
Gross Weight with Packaging	3,064.40 lb
Volume	124.66 ft³
