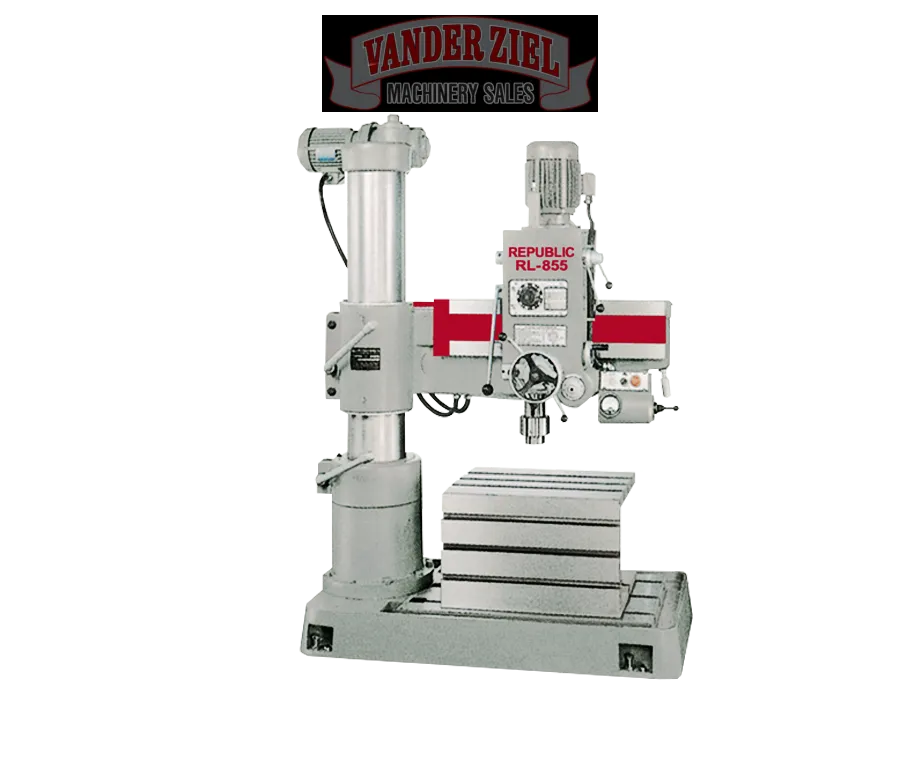

Lagun 21" / 25" x 8" Radial Drill, Models 855 & 955 - NEW
Lagun 21" / 25" x 8" Radial Drill, Models 855 & 955 - NEW
SKU #4206000
| Dimensions | 855 | 955 |
| Column Diameter | 8.3" |
| Column Surface to Spindle Center-Min. | 8.7" |
| Maximum Column Surface to Spindle Center | 29.5" | 33.5" |
| Travel of Head on Arm Ways | 20.9" | 24.8" |
| Minimum Spindle Face to Base Top | 10.23" | 13.77" |
| Maximum Spindle Face to Base Top | 41.73" | 47.63" |
| Arm Travel on Column (Elevating Height of Arm) | 23.8" | 25.6" |
| Base and Column Height | 72.8" | 79.1" |
| Maximum Machine Height From Floor | 85.4" | 91.3" |
| Effective Area of Box Table | 23.6" x 17.5" x 14.9" |
| Dimensions of Base | 49.6" x 25.2" x 6.3" |
| Shipping Dimensions | 65" x 33" X 85" | 67" x 33" X 87" |
| Spindle | 855 | 955 |
| Spindle Taper | MT #4 |
| Stroke of Spindle | 8.3" |
| Spindle Speeds (RPM x Steps) | 88 to 1,500 RPM x 6 |
| Spindle Power Feeds (Rev. x Steps) | 0.0019" - 0.0035" - 0.0059" x 3 |
| Capacities | 855 | 955 |
| Drilling Capacity in Steel | 1.5" |
| Drilling Capacity in Cast Iron | 2" |
| Tapping in Steel | 1" |
| Tapping in Cast Iron | 1.25" |
| Boring in Steel | 2.75" |
| Boring in Cast Iron | 4" |
| Motors | 855 | 955 |
| Direct Drive Main Motor | 2 HP |
| Arm Elevating Motor | 1 HP |
| Clamping | Manual |
| Coolant Pump Motor | 1/8 HP |
| Weights | 855 | 955 |
| Approximate Net Weight | 2,469 lb | 2,645 lb |
| Approximate Gross Weight | 2,755 lb | 2,945 lb |
REF: 010912
