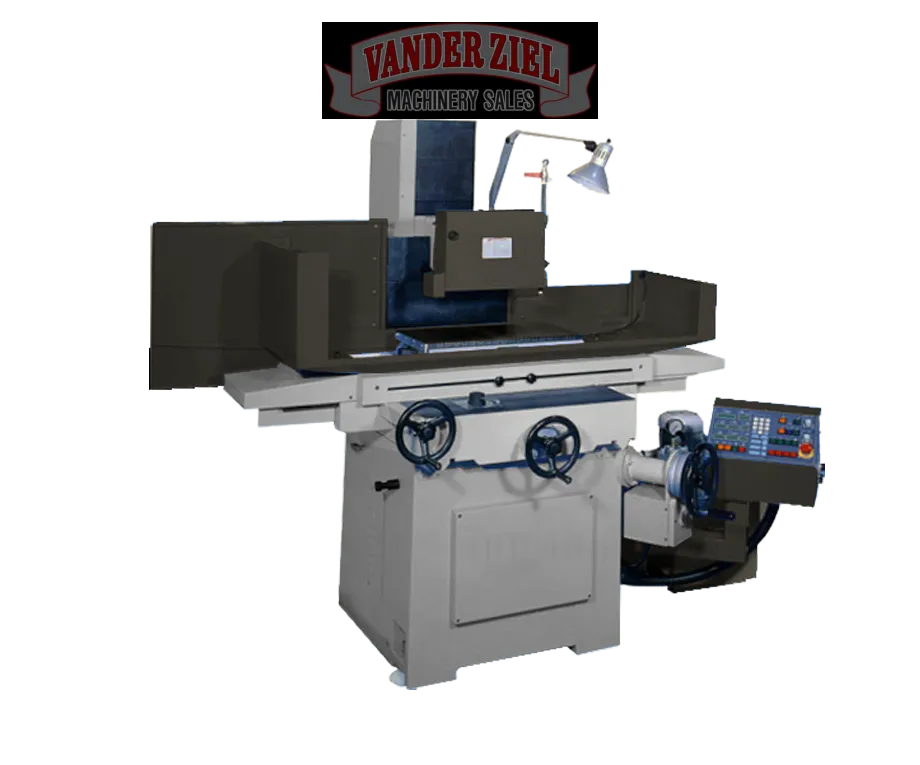

Lagun 12" x 24" Hand Surface Grinder, Model AH - NEW
Lagun 12" x 24" Hand Surface Grinder, Model AH - NEW
SKU # 4208000
Specifications
| Capacities | CS & DS Type | CL & DL Type |
| Table size | 12"x 24" |
| Maximum Grinding Surface | 12"x 24" |
| Grinding Wheel Size | |
| Maximum Longitudinal Travel | 27" |
| Maximum Cross Transverse Travel | 13" |
| Maximum From Table Surface to Spindle Centerline | 20"Optional 24" |
| Table Movement | |
| Longitudinal Table Speed | 16.4 ft to 82 ft per minuteInfinitely Variable Hydraulic |
| Auto Cross Feed Increment | 0.004"- 0.8" |
| Rapid Cross Traverse | 36" per minute |
| Handwheel Cross Traverse- Per Graduation- Per Revolution | 0.001"0.2" |
| Vertical Down Feed | |
| Optional Rapid Power Elevation | 11" per minute |
| Handwheel Down Feed- Per Graduation- Per Revolution | 0.0004" | 0.0002" 0.05" |
| Spindle Drive | |
| Spindle Speed (60 Hz) | 3,500 RPM | 1,750 RPM |
| Spindle Motor Power | 2 hp | 5 hp |
| Motors | |
| Hydraulic Motor | 1 hp |
| Crossfeed Motor | 0.25 hp |
| Coolant Pump Motor | 2 hp |
| Optional Vertical Elevation Motor | 1.5 hp |
| Floor Dimensions | 102" x 68" |
| Approximate Weight | 3,740 lb |
| Optional Auto Down Feed | 0.00004" - 0.04" per minute |
| Table Guide Ways | V & Flat Way |
| Packing Gross Weight | 4,290 lb |
| Packing Dimensions | 90"x 71" x 83" |
REF: 010908
