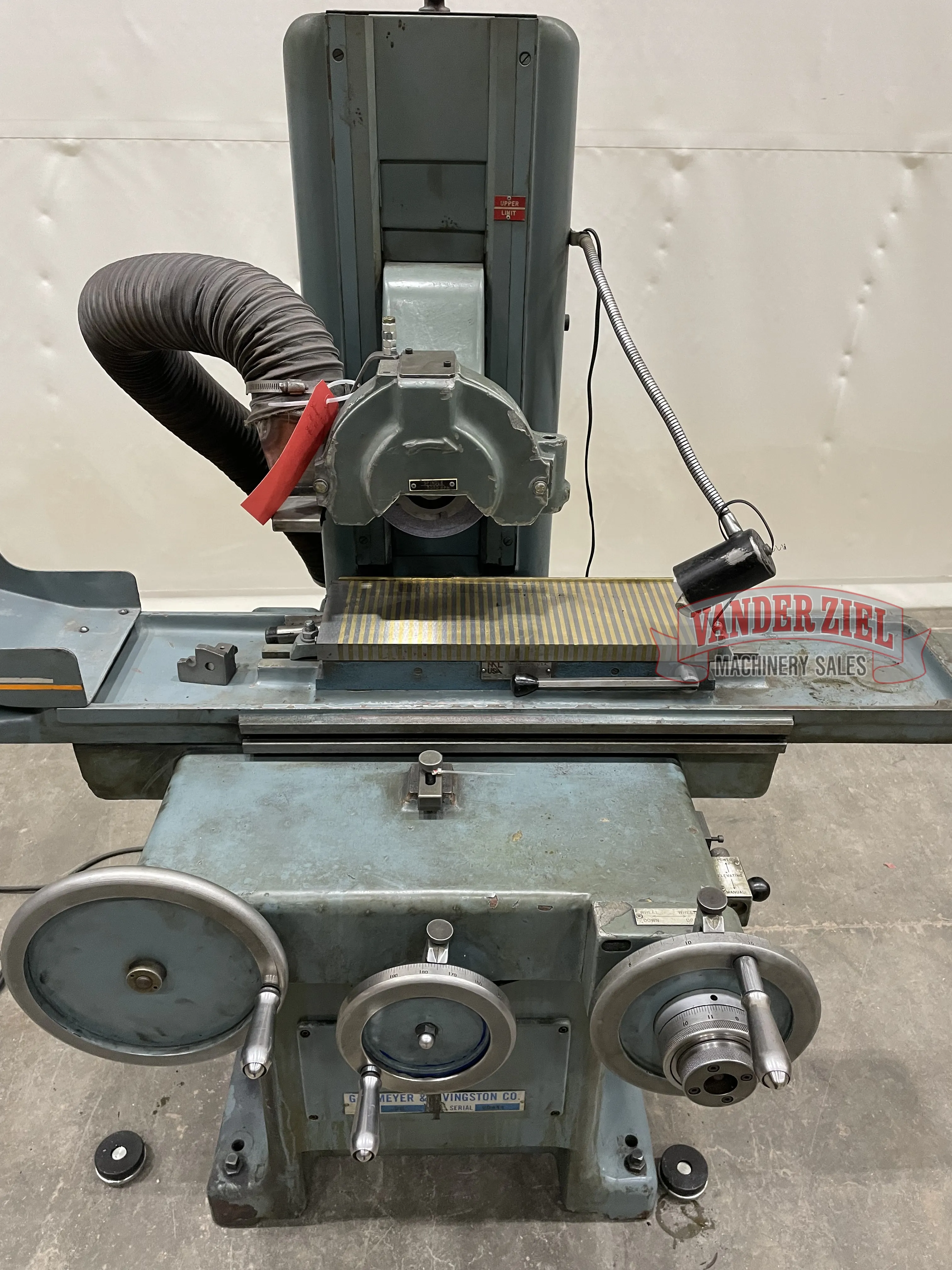

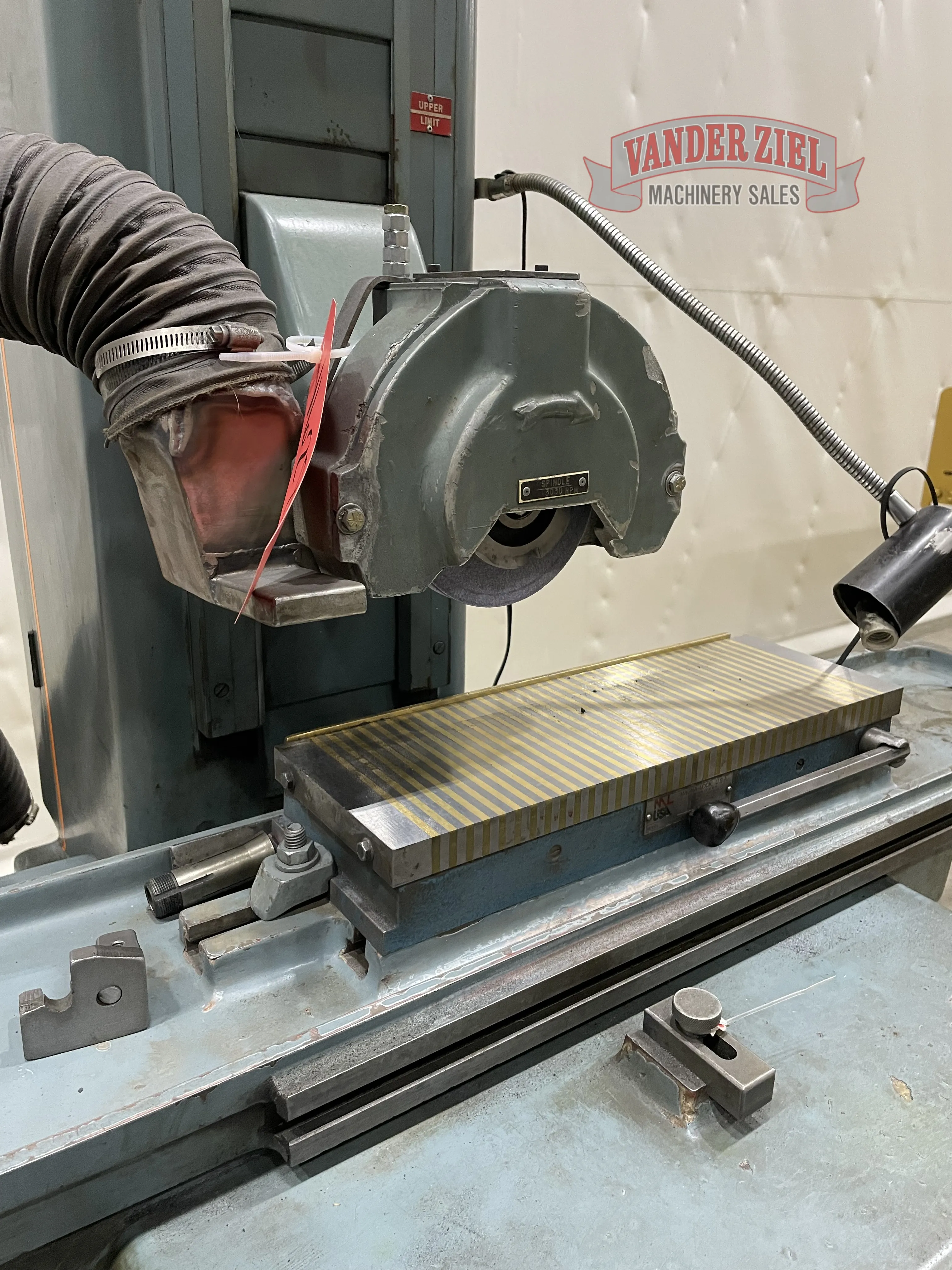

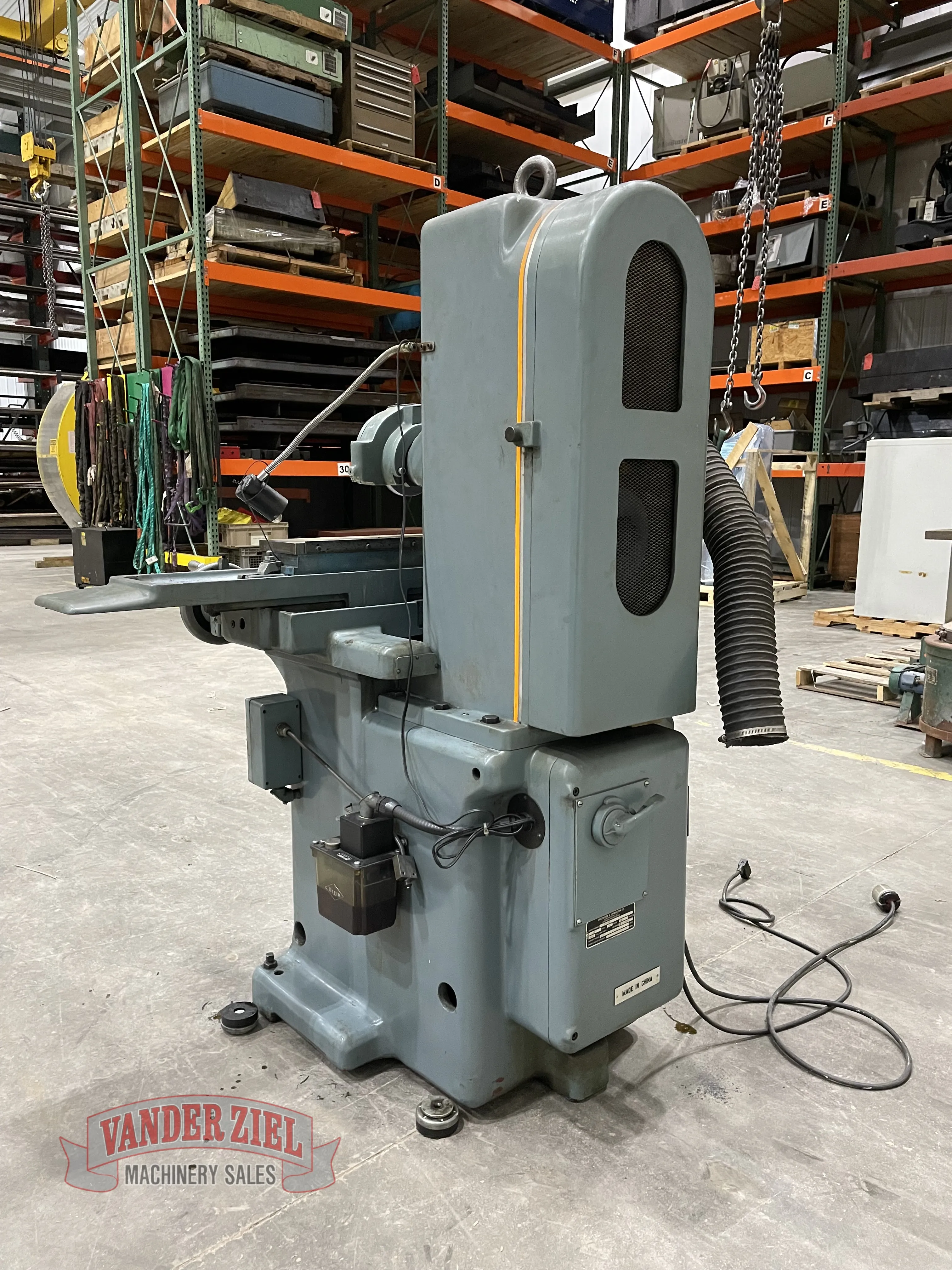

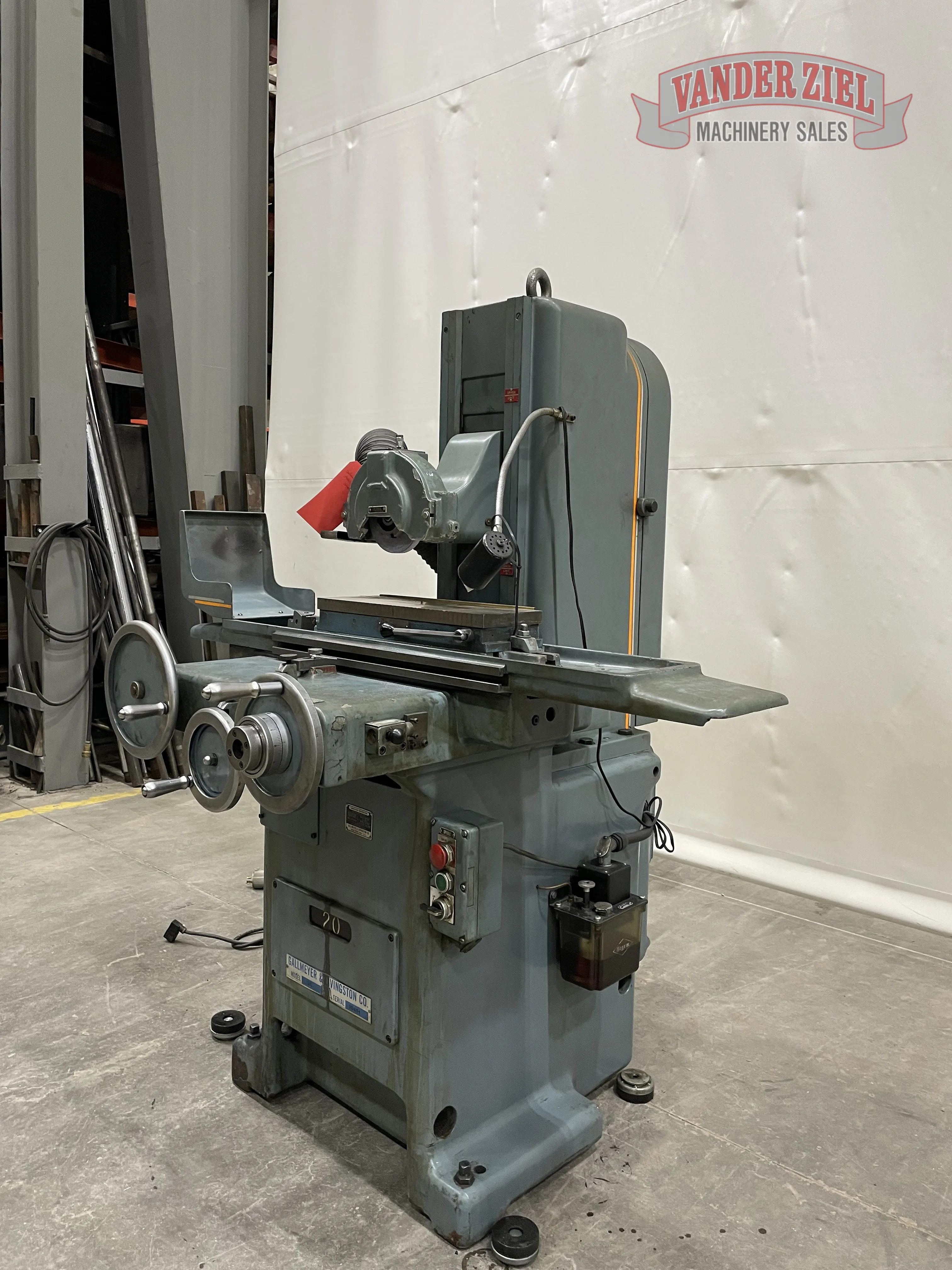

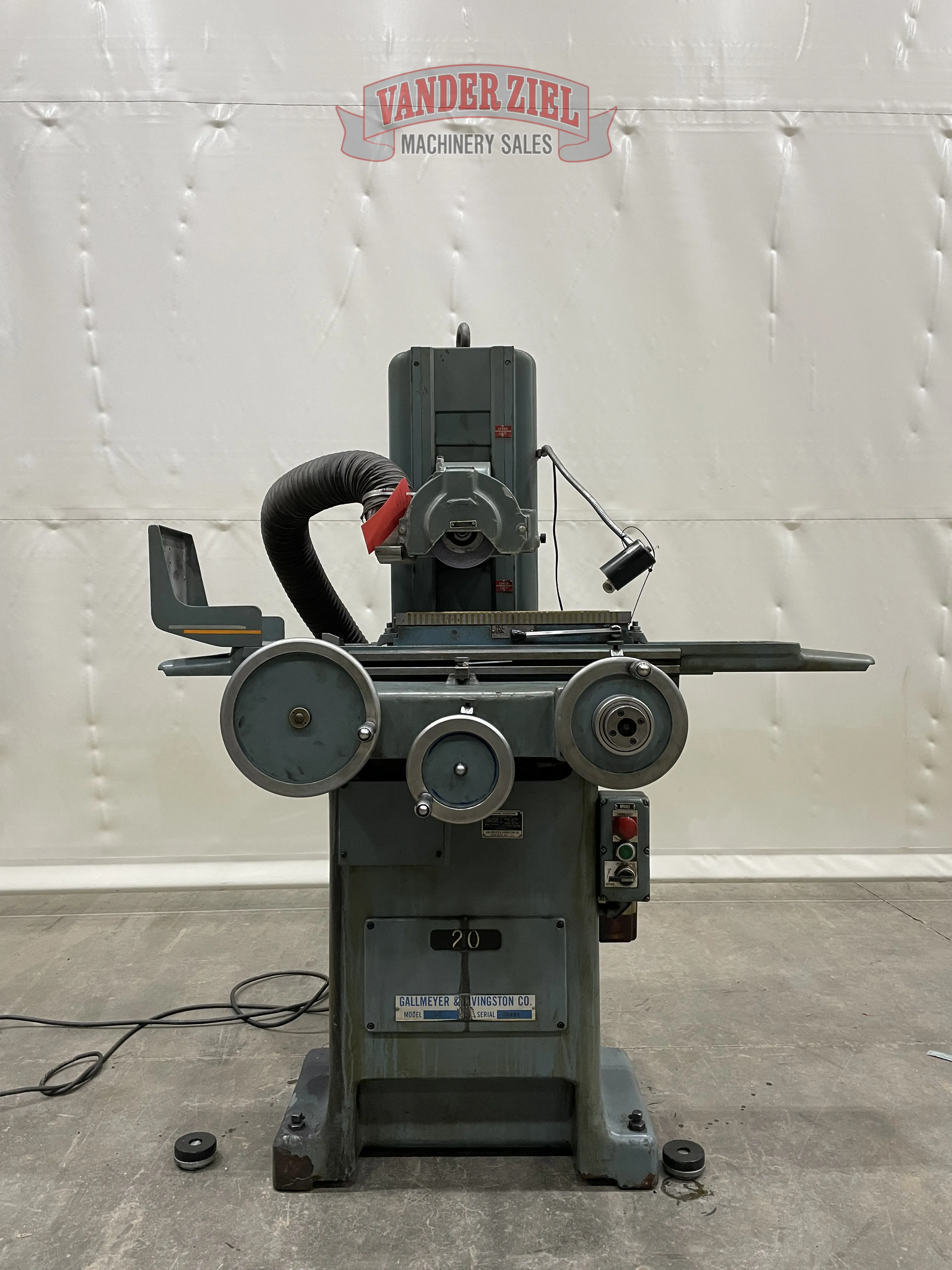

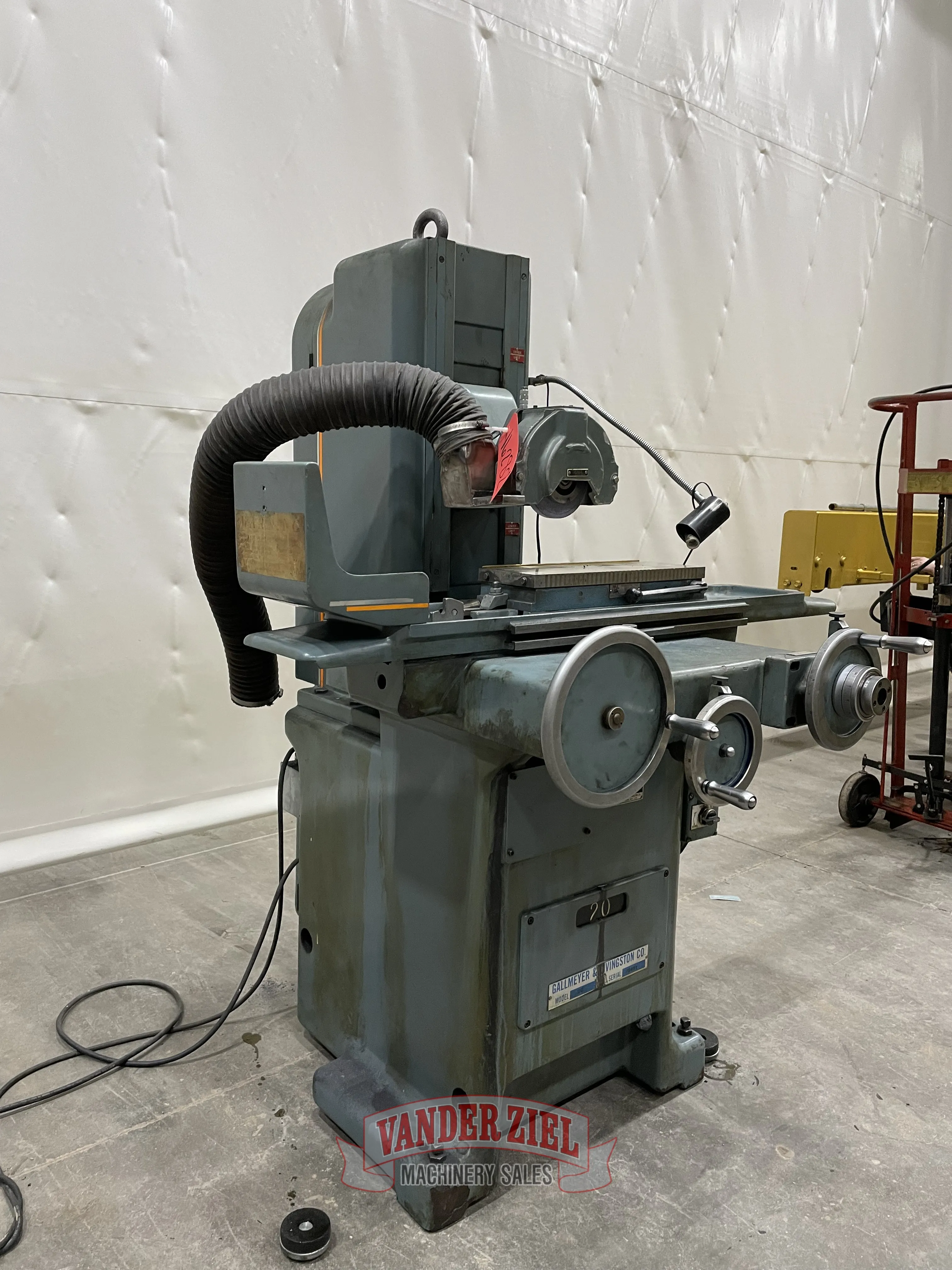

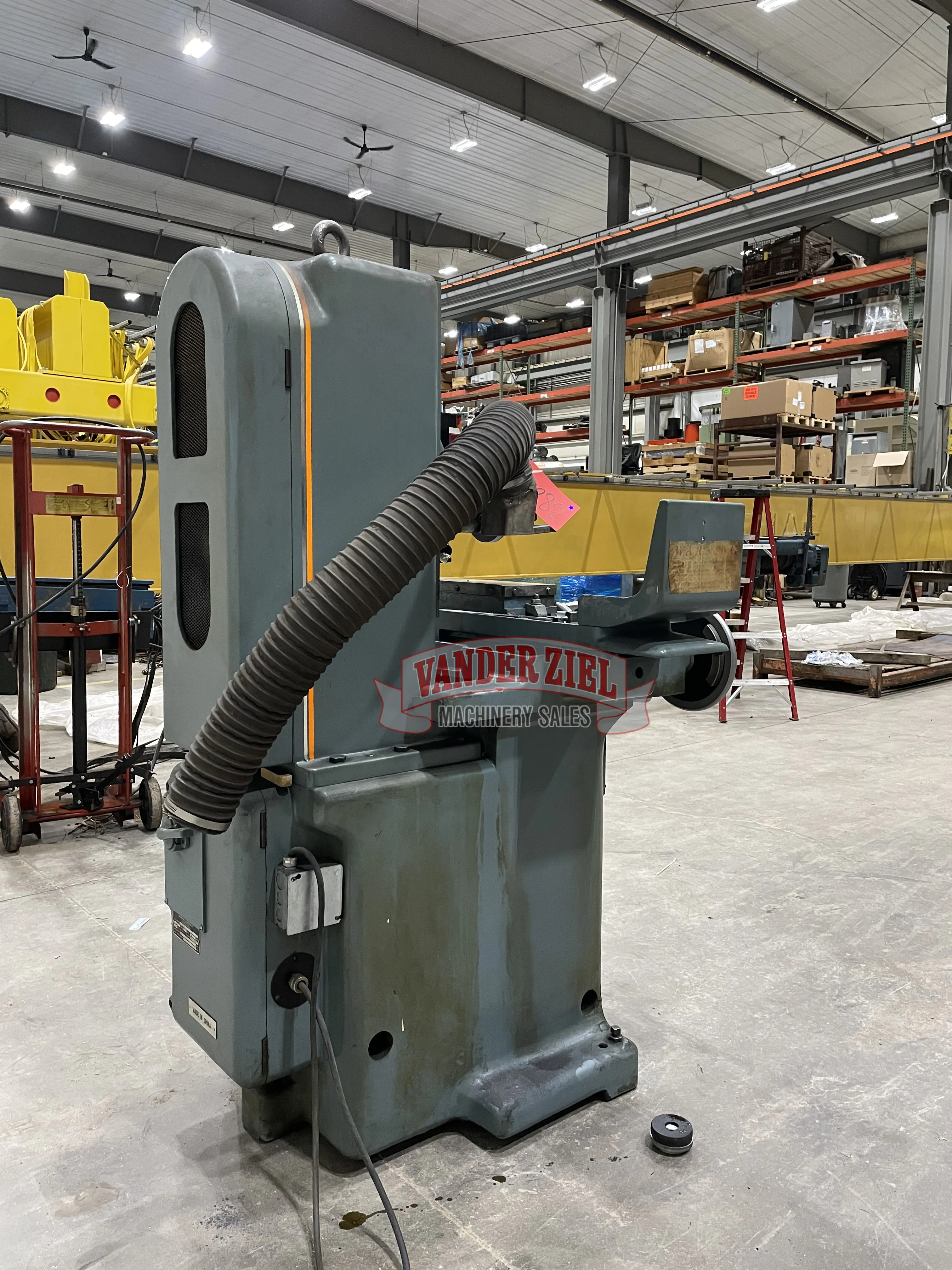

Gallmeyer & Livingston 6” x 18” Hand Feed Surface Grinder, Model #20

Gallmeyer & Livingston 6" x 18" Hand Feed Surface Grinder, Model #20

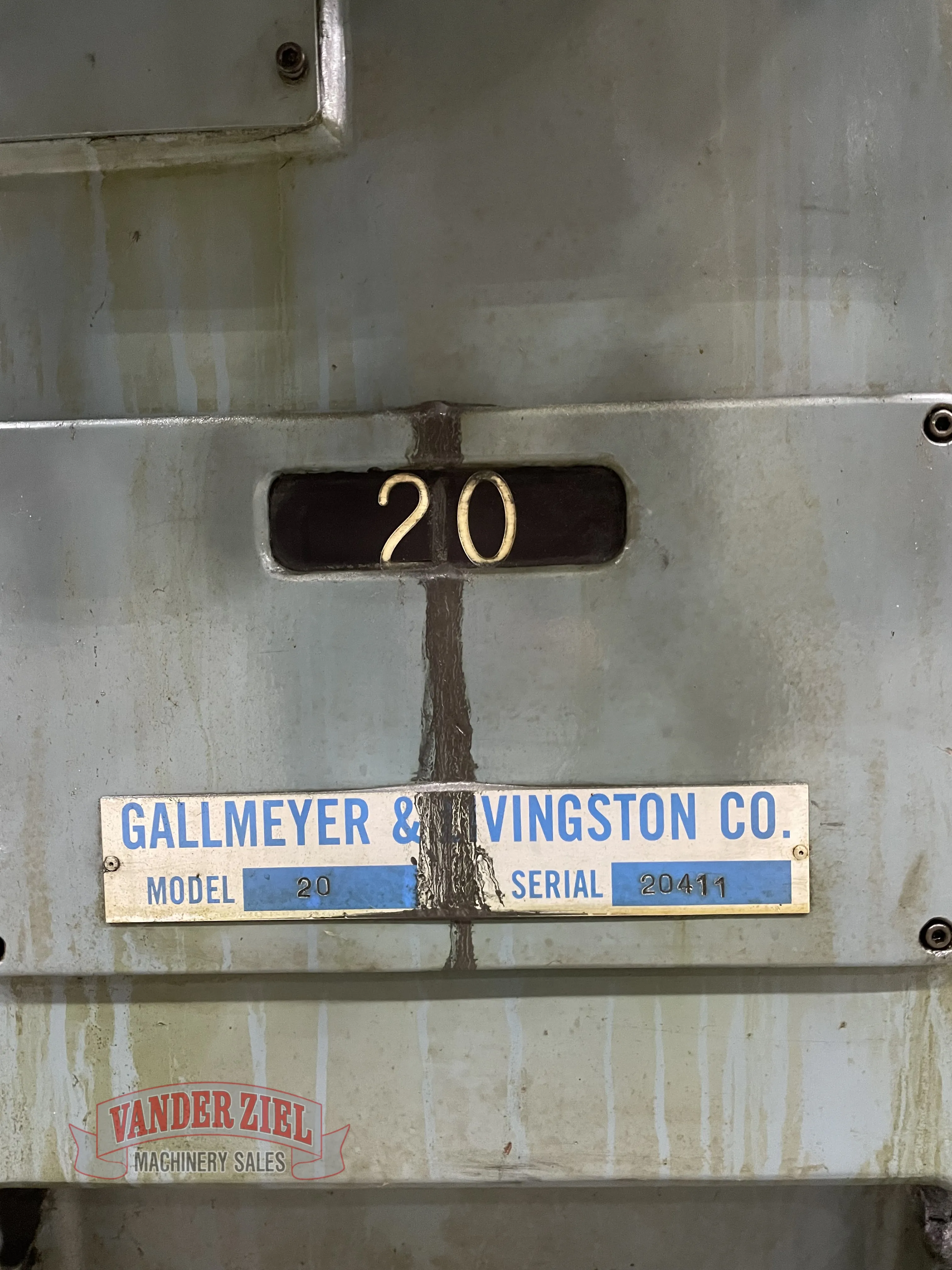

Serial # 20411
Asset # 16282

Specifications:
Maximum Grinding Width 7"
Maximum Grinding Length 18"
Work Height (Full Wheel) 15"
Wheel Diameter 8"
Wheel Width 1/2"
Wheel Bore 1.25"
Throat Depth 8.19"
Housing Radius 2"
Spindle Speed 3000 RPM
Spindle Drive Motor 1 HP
Vertical Adjust Speed 10.75 IPM
Work Surface 6" x 18"
Maximum Longitudinal Travel 20"
Longitudinal Travel per Handwheel Revolution 4.5"
Maximum Cross Travel 6.75"
Cross Travel per Handwheel Revolution .200"

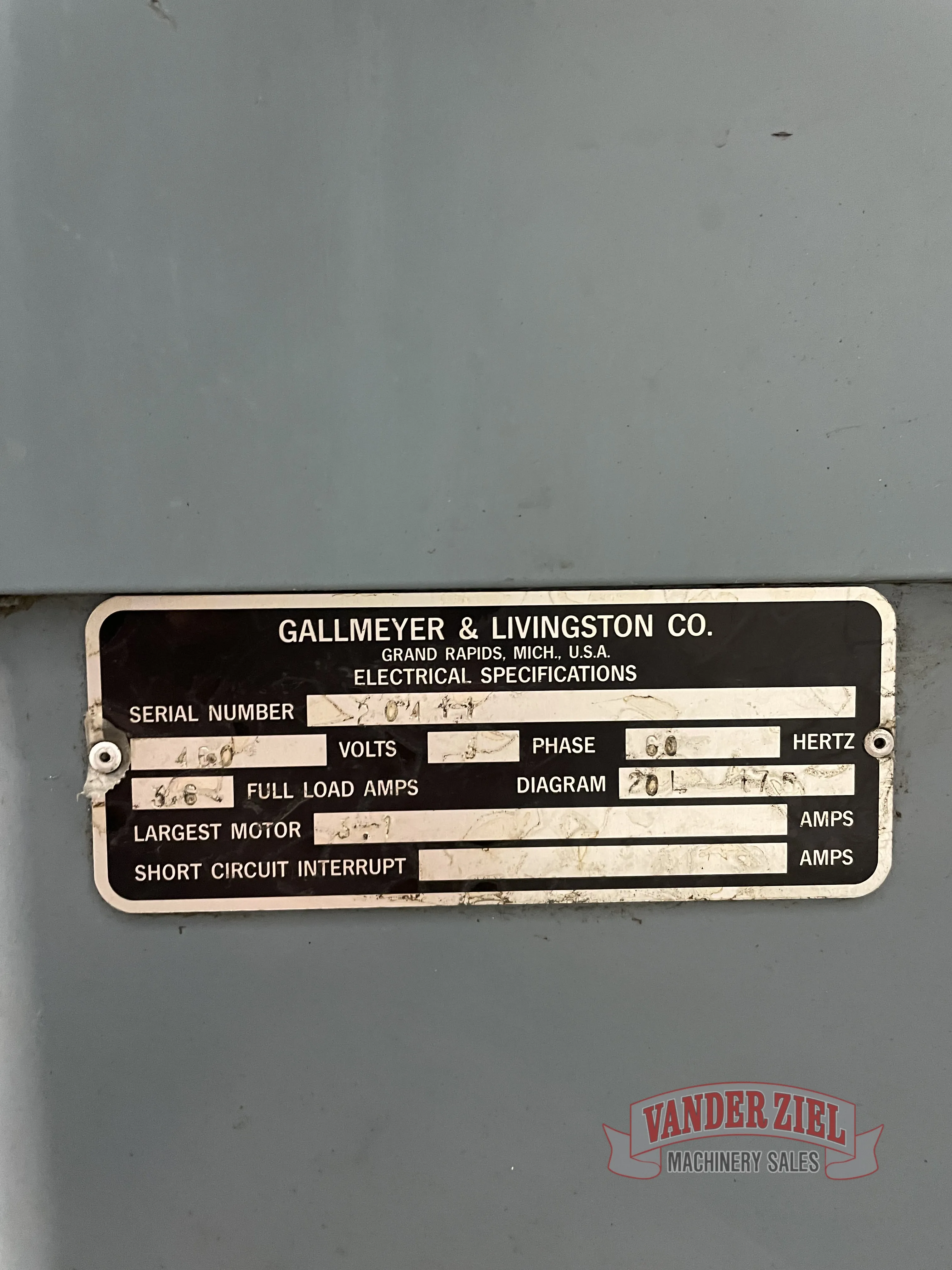

Motor 230/460 V, 3 PH, 60 HZ
Dimensions 73" x 64"
Height 71"
Floor to Work Surface Height 39"
Weight 2,000 lbs.

Preliminary Specifications - Subject to Verification
