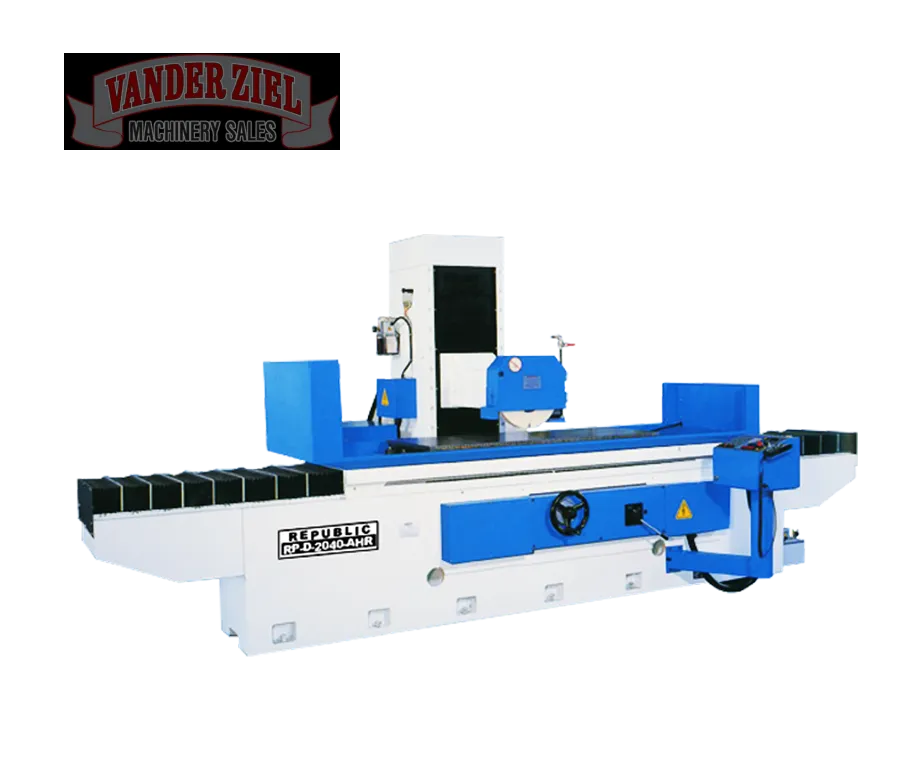

Lagun 20" x 60" / 24" x 60" Hydraulic Surface Grinder, Model AHR - NEW
Lagun 20" x 60" / 24" x 60" Hydraulic Surface Grinder, Model AHR - NEW
SKU # 42090003
Specifications
| Capacities | 2060 AHR | 2460 AHR |
| Table size | 20" x 60" | 24" x 60" |
| Maximum Grinding Surface | 20" x 60" | 24" x 60" |
| Grinding Wheel Size | 16" x 2" x 5" |
| Maximum Longitudinal Travel | 65" |
| Maximum Cross Transverse Travel | 22" | 26" |
| Maximum Distance Center of Spindle to Table | 24"(Optional 31" & 40") |
| Table Movement | 2060 AHR | 2460 AHR |
| Longitudinal Table Speed | 16.4 ft - 82 ft per minInfinitely Variable Hydraulic |
| Power Cross Feed - 60hz | 44" per minute |
| Auto Cross Feed Increment | 0.004" - 0.8" |
| Rapid Cross Traverse | 36" per minute |
| Handwheel Cross Traverse- Per Graduation- Per Revolution | 0.001"0.2" |
| Vertical Down Feed | 2060 AHR | 2460 AHR |
| Rapid Power Hand Elevation | 10" per minute |
| Vertical Feed by MPG- Per Graduation- Per Revolution | (x1) 0.0001" - (x5) 0.0005" - (x10) 0.001"(x1) 0.01" - (x5) 0.05" - 0.1" |
| Spindle Drive | 2060 AHR | 2460 AHR |
| Spindle Speed (60 Hz) | 1,750 RPM |
| Spindle Motor Power- Optional | 10 hpOptional 15 hp |
| Hydraulic Pump Motor | 5 hp |
| Floor Dimensions | 203" x 91" |
| Optional Auto Down Feed | 0.00004" - 0.04" per minute |
| Table Guide Ways | Cross: double V-ways Longitudinal: V& Flat-ways |
| Machine Net Weight | 15,840 lb | 16,500 lb |
| Packing Gross Weight | 17,820 lb | 18,480 lb |
| Packing Dimensions | 154" x 90" x 90" |
REF: 010909
