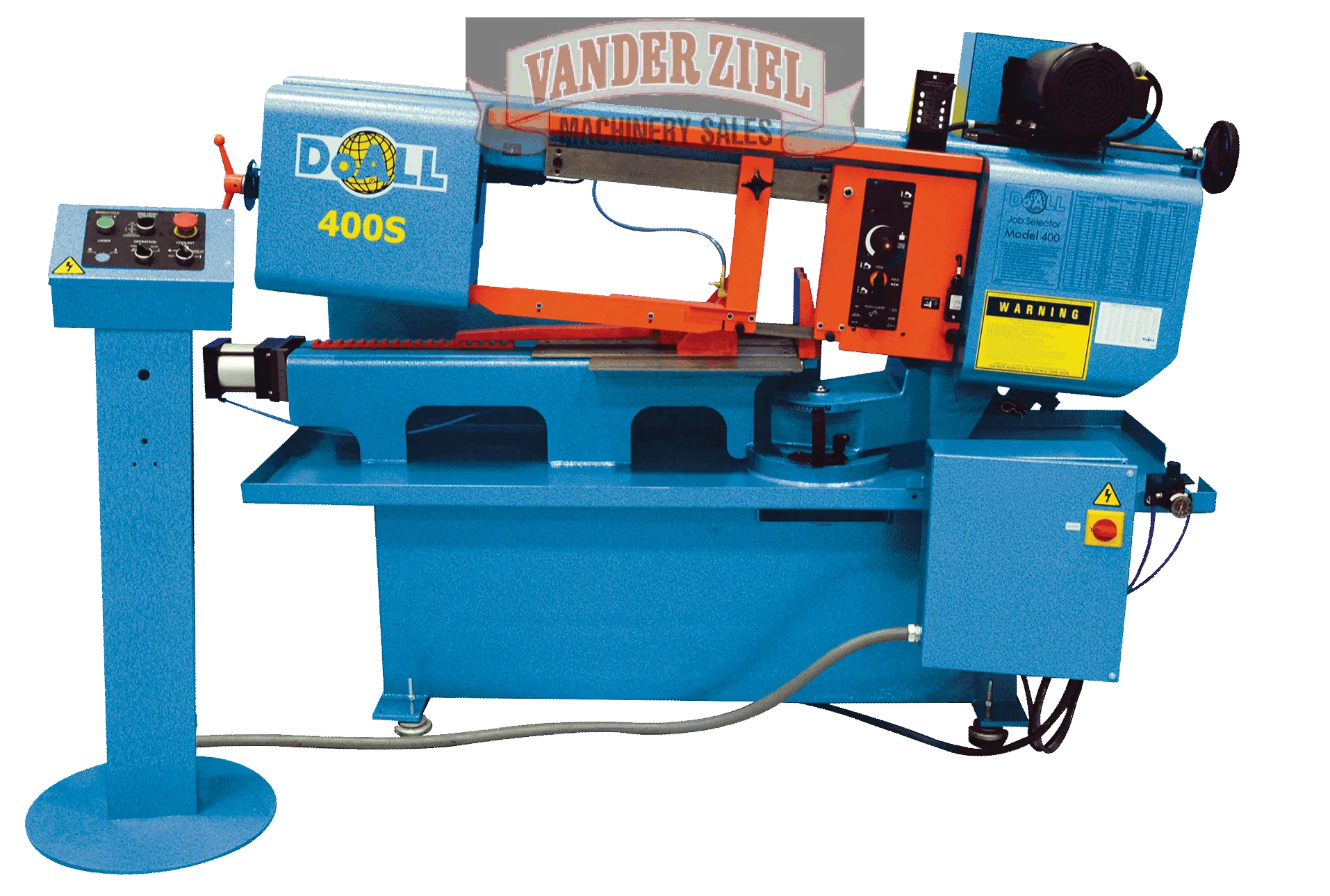

DoAll 9" x 16" Horizontal Saw, Model 400S - NEW
DoAll 9" x 16" Horizontal Saw, Model 400S - NEW
SKU #1120012
Machine Capacity: 9" x 16" (229x406 mm)
Production Level: Low
The DoALL 400S general purpose band saw is part of the StructurALL® family of horizontal metal cutting scissor saws. Swiveling 45 degrees, it's the ideal machine for the small to medium fabricator or machine shop, looking to make extremely accurate (straight or miter) cuts in smaller quantities. The 400S features a 9" (229mm) high x 16" (406mm) wide capacity of rectangles and 10-3/4" (273mm) rounds. This 400S manual machine can be equipped with a variety of options to further ease operation, such as pneumatic head-lift and pneumatic vise attachments.
- Capacity at 90° Rectangle: 9" x 16" (229x406mm)
- Capacity at 90° Round: 10-3/4" (273mm)
- Capacity at 45° Rectangle: 9" x 10-3/4" (229x273mm)
- Capacity at 45° Round: 10-3/4" (273mm)
- Recommended Band Type: 1" x 0.035" (25x0.89mm)
- Maximum Band Length: 158" (4,013mm)
- Band Speed: Variable, 105-275 fpm (32-82mpm)
- Band Tension: Spring Loaded by Hand Wheel
- Feed Control: Infinitely Variable, Hydraulic
- Head: Counter-Balanced
- Vise: Manual
- Wheels: 14.5" (368mm) diameter, Cast Iron
- Material Pass Line Height: 29-1/8" (740mm)
- Table Capacity: 1800 lbs (816kg)
- Floor Space Required: 87x 42x55" (2210x1067x1397mm)
- Weight: 1200 lbs (544kg)
Standard Equipment:
- Swivel head to 45 degrees
- Recirculating coolant system
- Saw guides, spring-loaded, solid carbide inserts
- Rapid saw head approach control
- Band door interlocks
- Fine adjustment head feed control
- Complimentary coolant package
- Powered band brush
- Replaceable steel wear plates on bed
- Discharge tray
- Shovel rake
- Instruction plate with sawing recommendations
- Saw blade guard
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000467
Similar Machines
Browse All Equipment Listings
New
DoAll

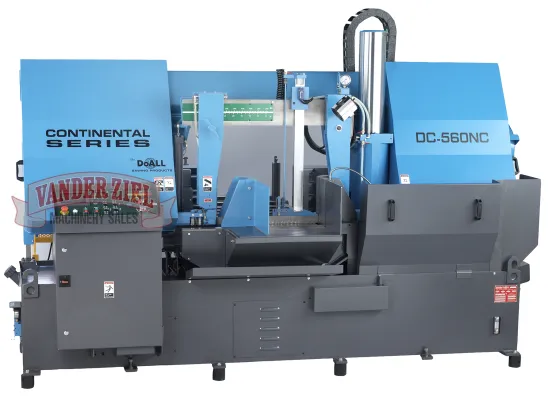

DoAll 24" x 22" Production Horizontal Saw, Model DC-560NC - NEW
