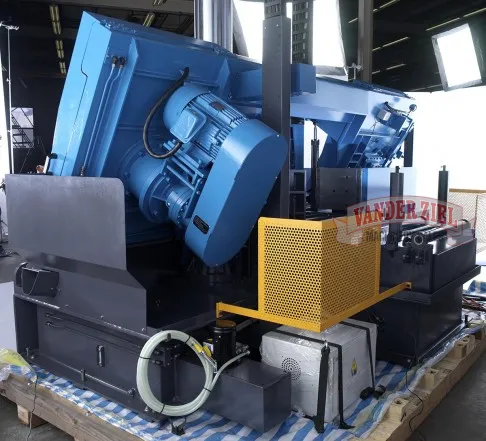

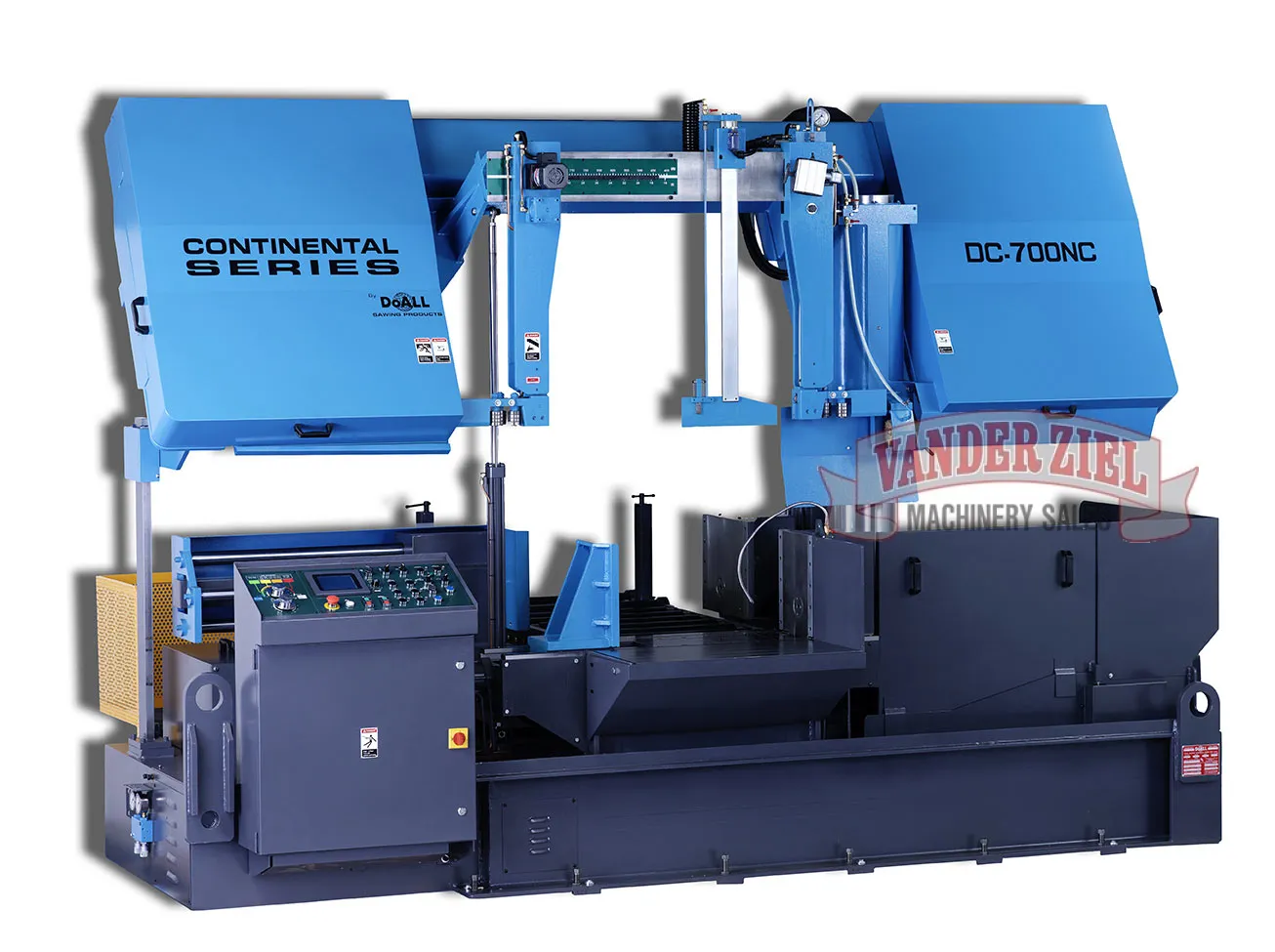

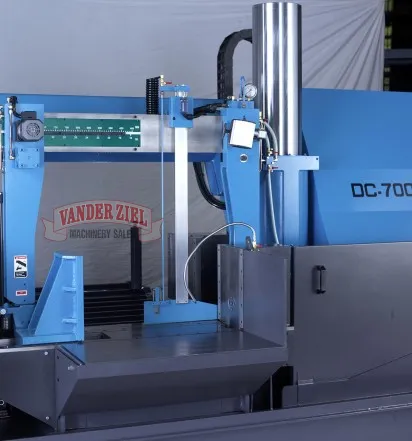

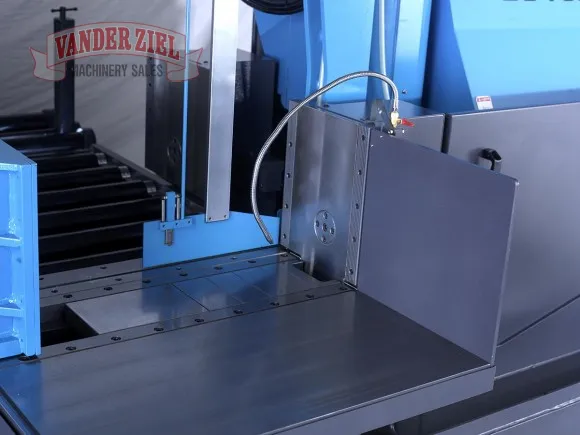

DoAll 27" x 31" Production Horizontal Saw, Model DC-700NC - NEW
DoAll 27" x 31" Production Horizontal Saw, Model DC-700NC - NEW
SKU #1120019
Machine Capacity: 27 x 31" (700x800mm) | Round: 27" (700mm)
Production Level: High
The DC-700NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. The DC-700NC offers automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
- Cutting Capacity Round: 27" (700mm)
- Cutting Capacity Rectangle: 31" x 27" (800x700mm)
- Bundle Capacity Maximum: 25-5/8" x 13" (650x330mm)
- Bundle Capacity Minimum: 13-3/8" x 7-5/8" (340x195mm)
- Band Saw Blade (L x W x Gage): 325 x 2-5/8 x 0.063" (8255x67x1.6mm)
- Band Speed: 72-390 fpm (22-120mpm)
- Band Drive: 10 HP (7.5kW)
- Hydraulic Pump: 3 HP (2kW)
- Hydraulic Tank Capacity: 34 Gal. (130 Liters)
- Coolant Tank Capacity: 37 Gal. (140 Liters)
- Automatic Index Length Single: 15.75" (400mm)
- Automatic Index Length Multiple: 141.73" (3600mm)
- Material Pass Line Height: 31-1/2" (800mm)
- Machine Weight: 15650 lbs. (7099kg)
- Floor Space Required: 154 x 89 x 90" (3910x2240x2300mm)
Standard Equipment:

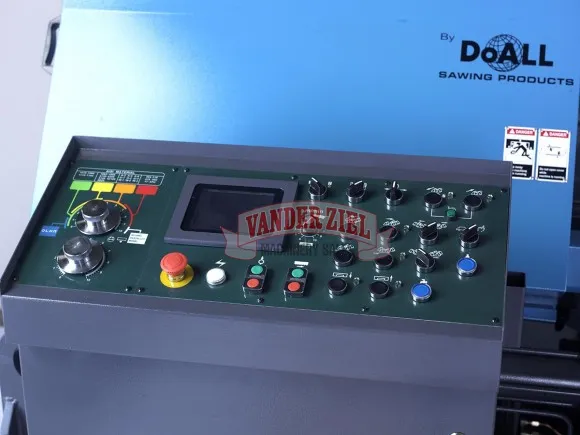

- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control

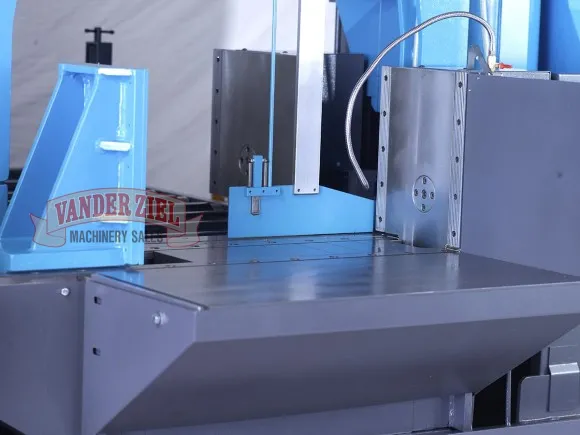

- Multi-step full stroke vises with split front vise and variable vise pressure control

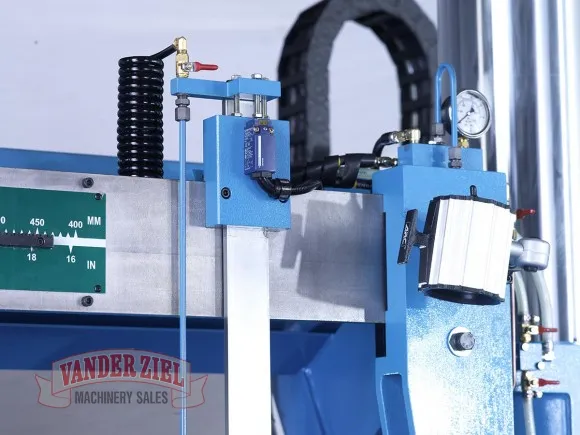

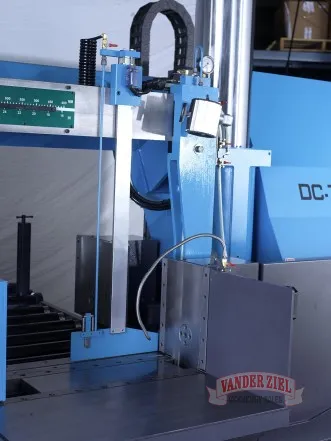

- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6 1/2 ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000474
Similar Machines
Browse All Equipment Listings
New
DoAll
DoAll 16" x 24" Dual Column Miter Horizontal Saw, Model DCDS-600NC - NEW
Asset #: 1120002N
$95,450
New
Marvel
Marvel Spartan 10" x 12" Horizontal Scissor Saw with Programmable Controls, Model PA 10/3/MPC - NEW
Asset #: 2320010N
$39,900
New
W.F. Wells

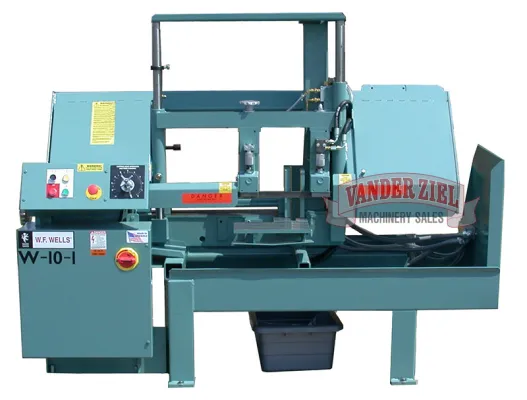

W.F. Wells 10" x 17" Semi-Automatic Horizontal Saw, Modoel W-10-1 - NEW
