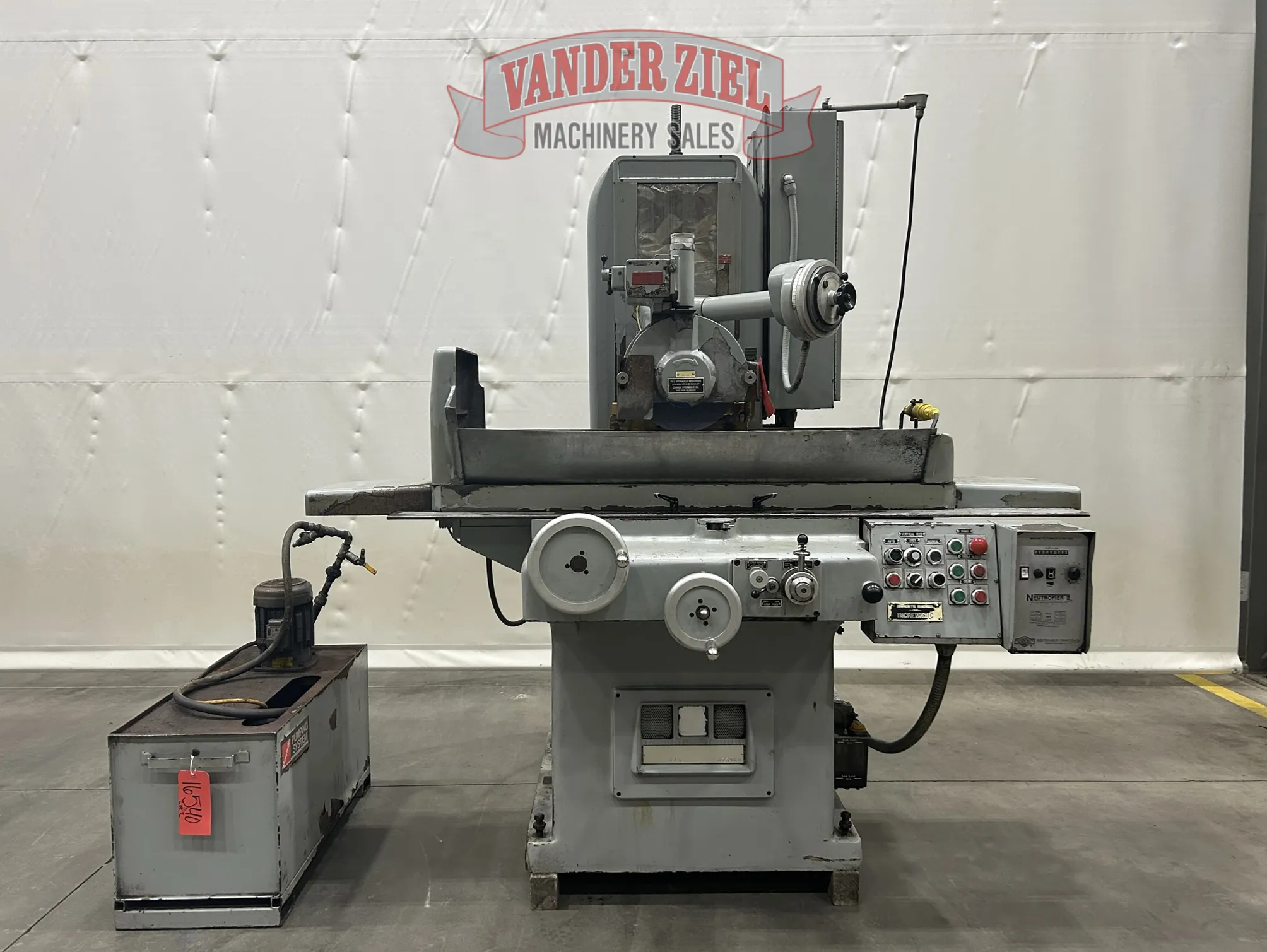

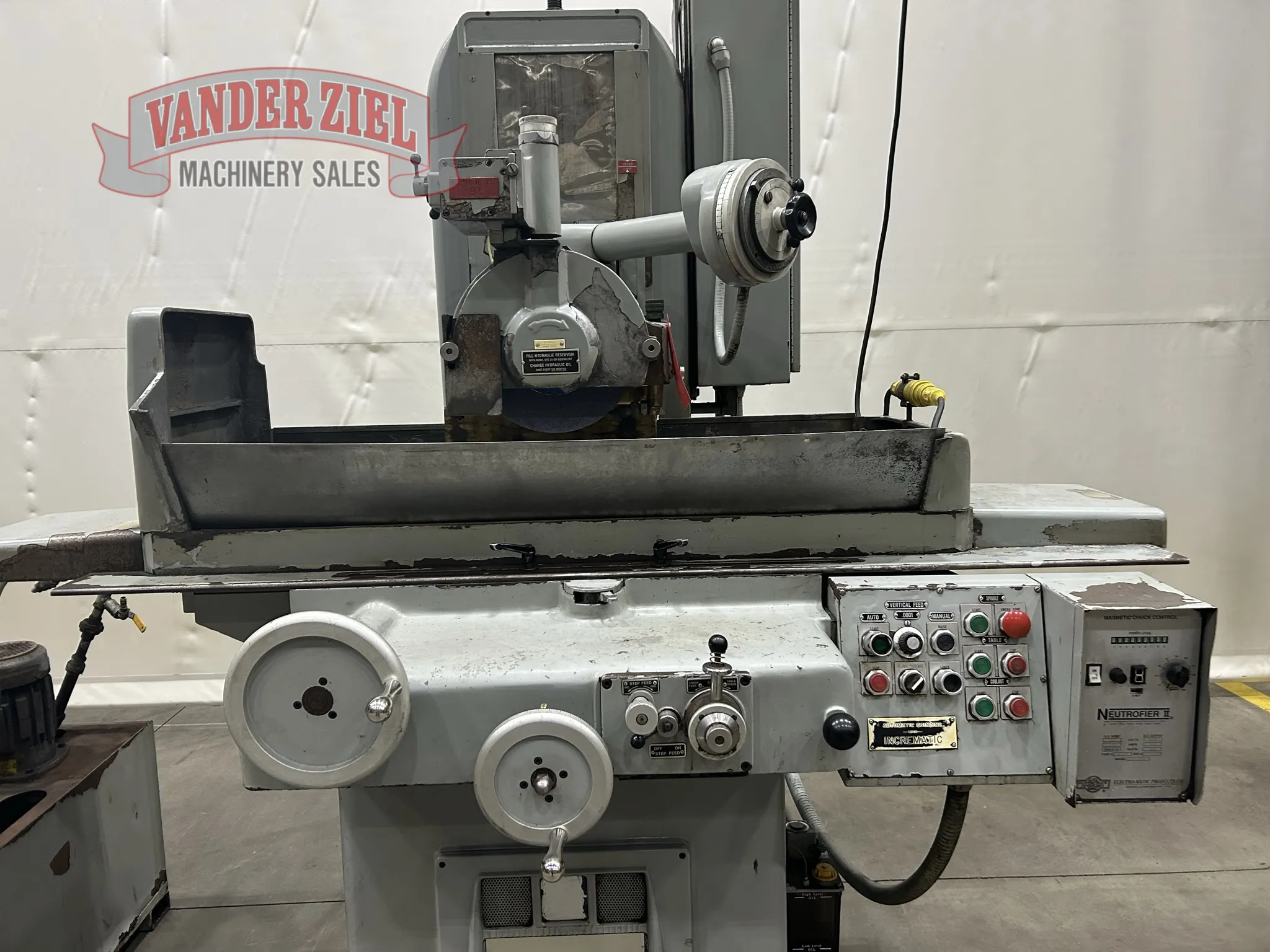

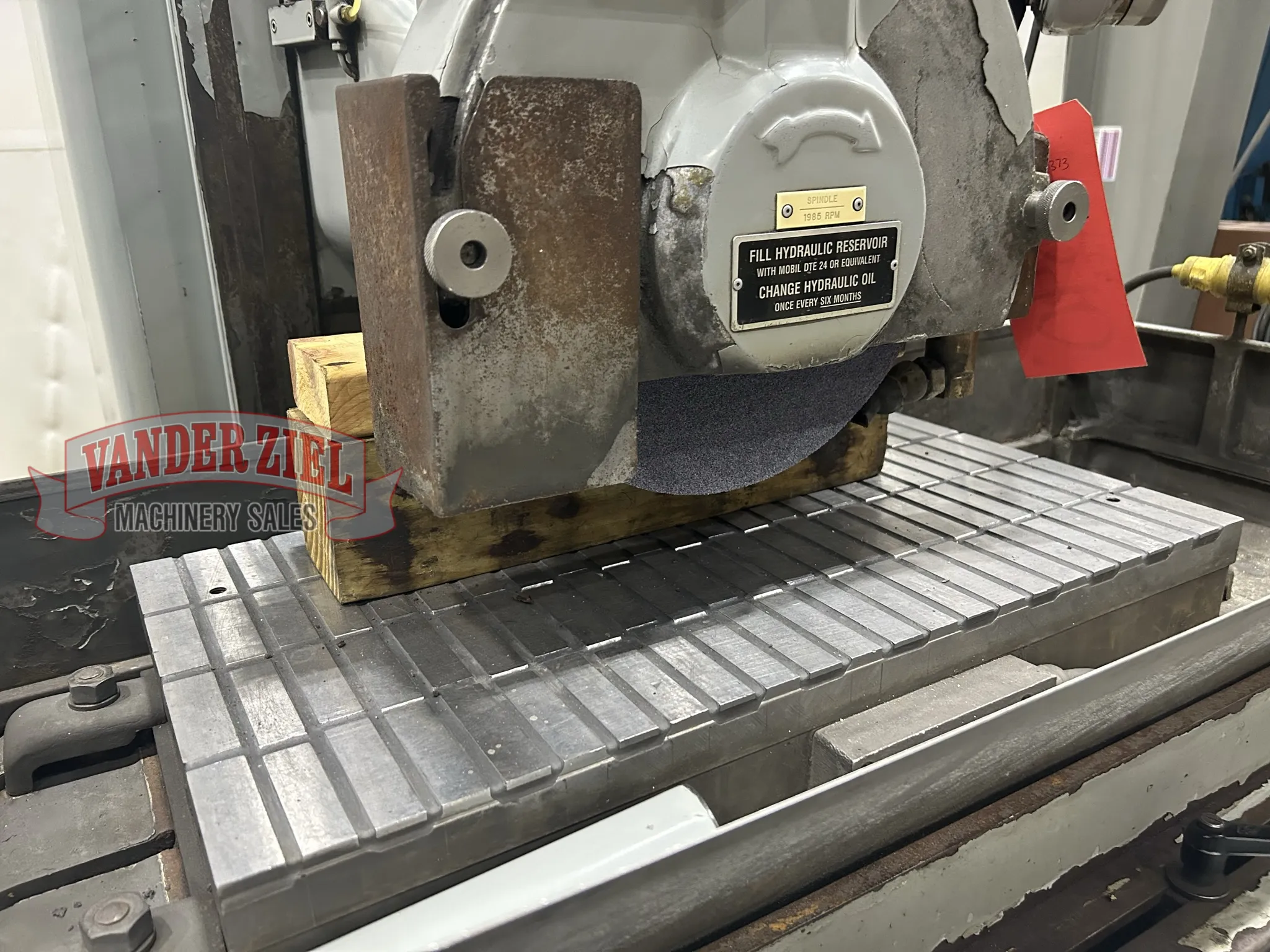

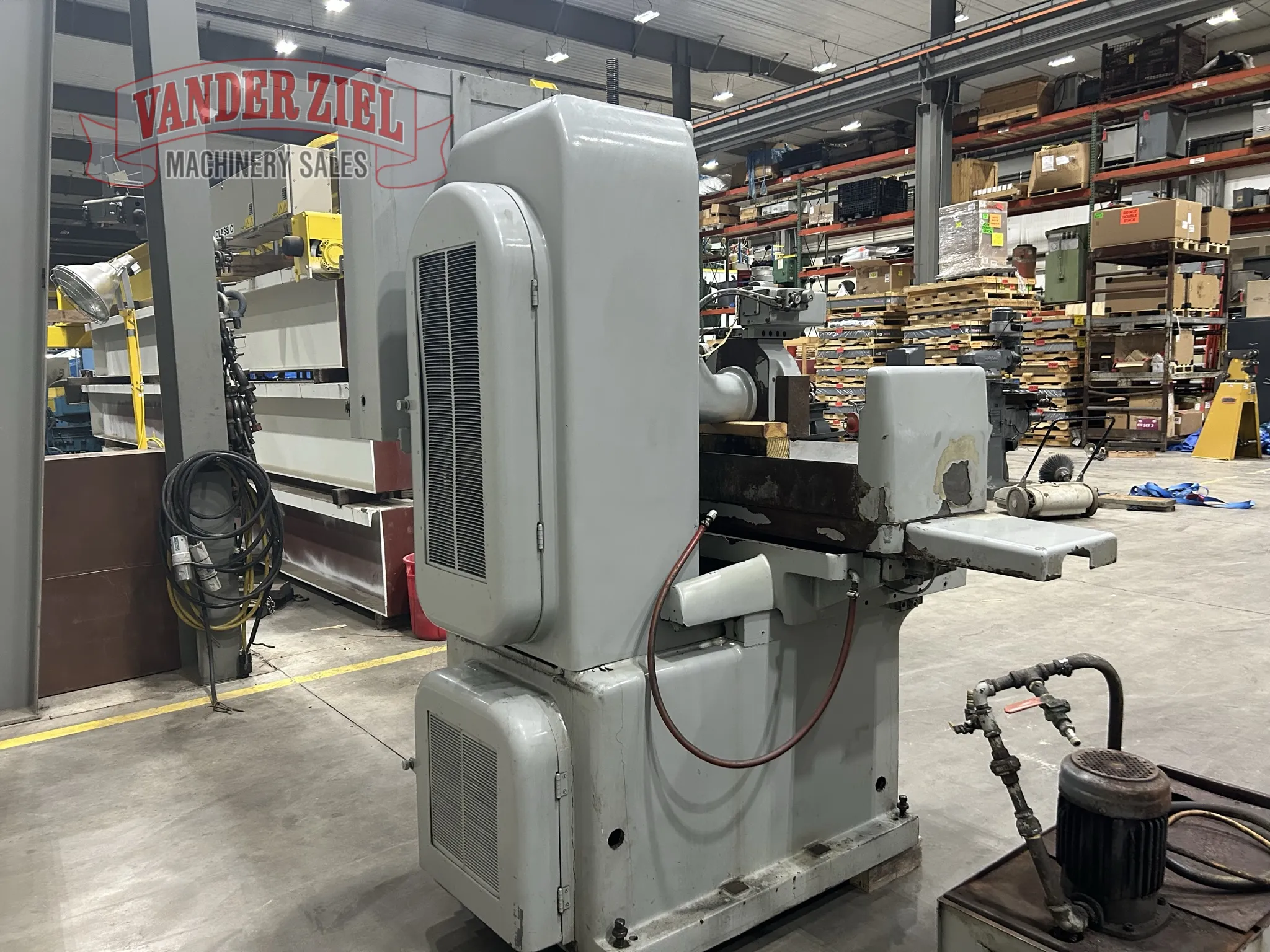

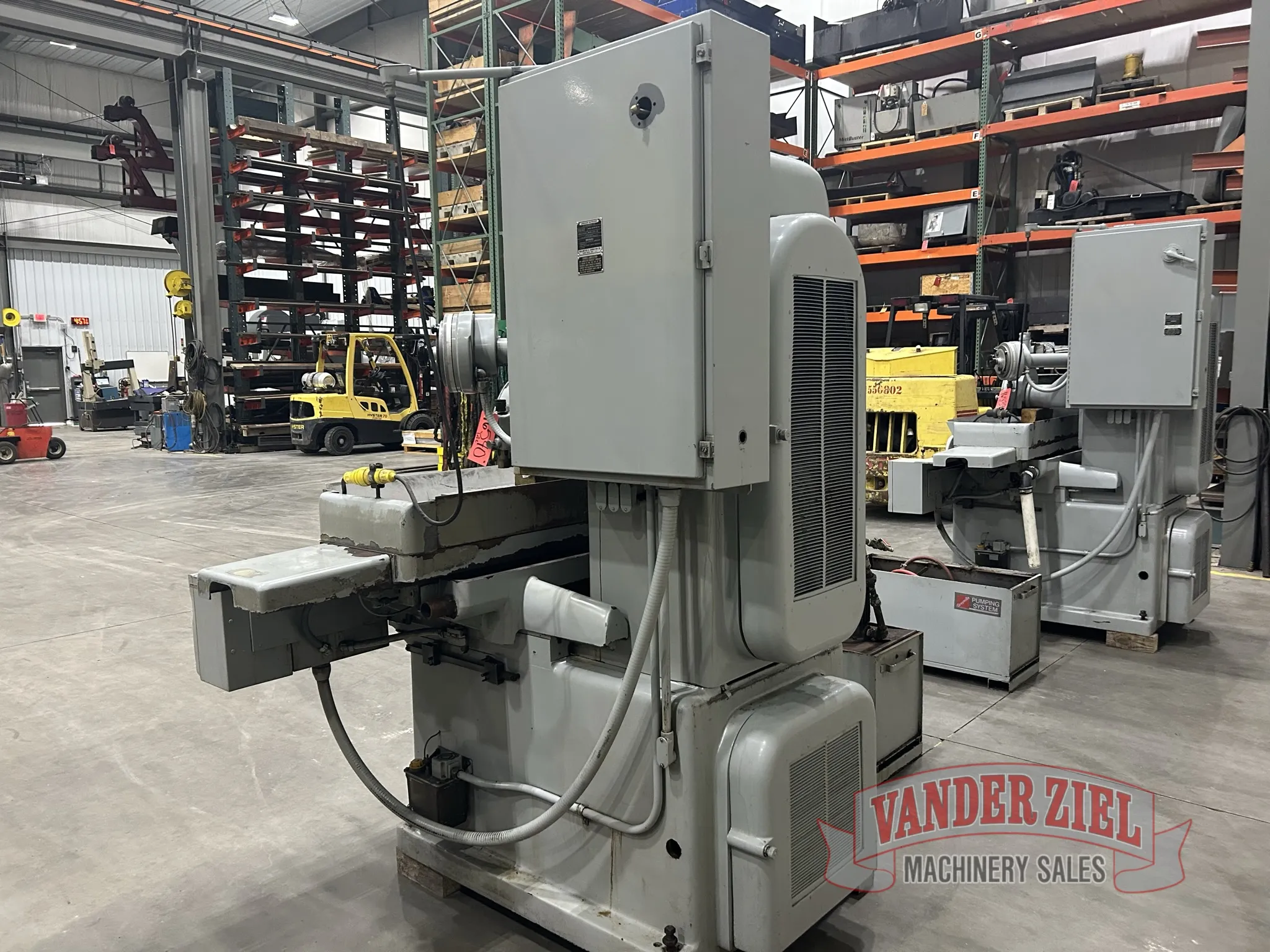

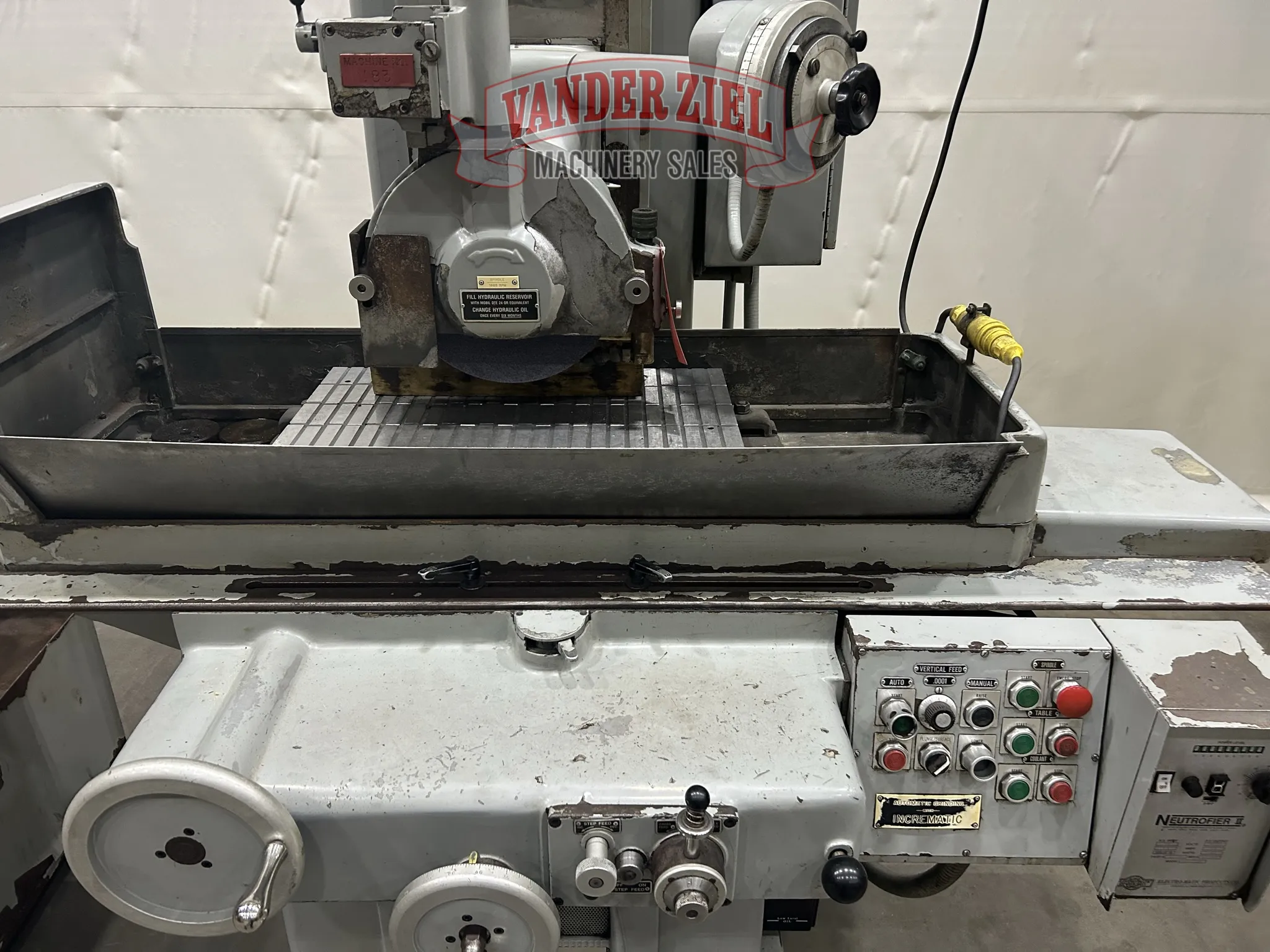

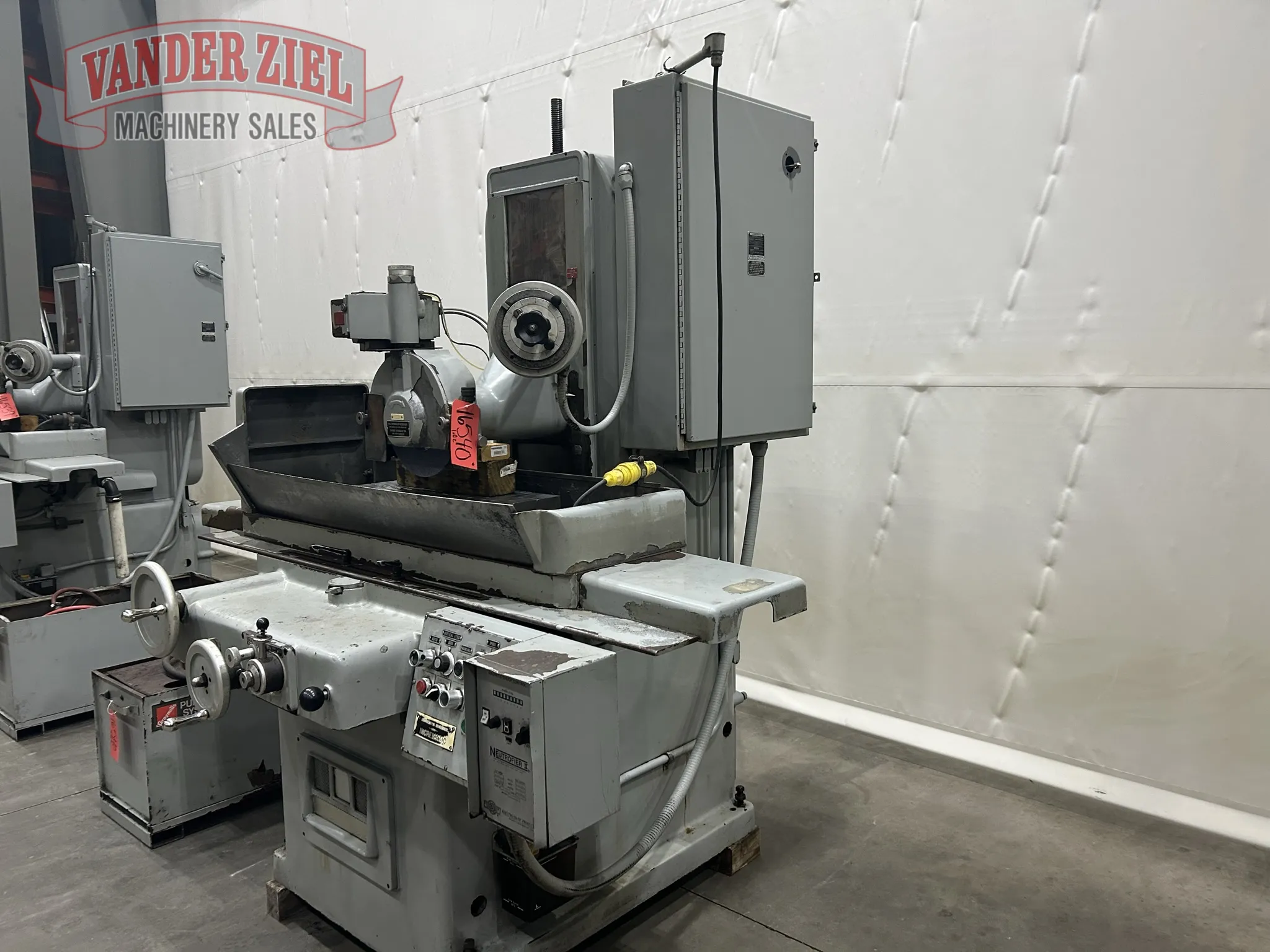

Gallmeyer & Livingston 12" x 24" Hydraulic Surface Grinder, Model 373

Serial # 373408
Asset # 16540

Specifications:

Working surface of table 12"x24"
Longitude table speed 3" to 150 FPM
Longitude-hydraulic table travel-max 29 1/2"
Transverse hydraulic table-max 13 1/4"
Standard wheel size 12"x1"x3"
Vertical movement of wheel head 19"
Max distance wheel to table 15"
Distance center of spindle to bottom of housing 2 1/2"
Standard spindle speeds 2000-2400 RPM
Standard spindle motor (1750 RPM) 3 Hp

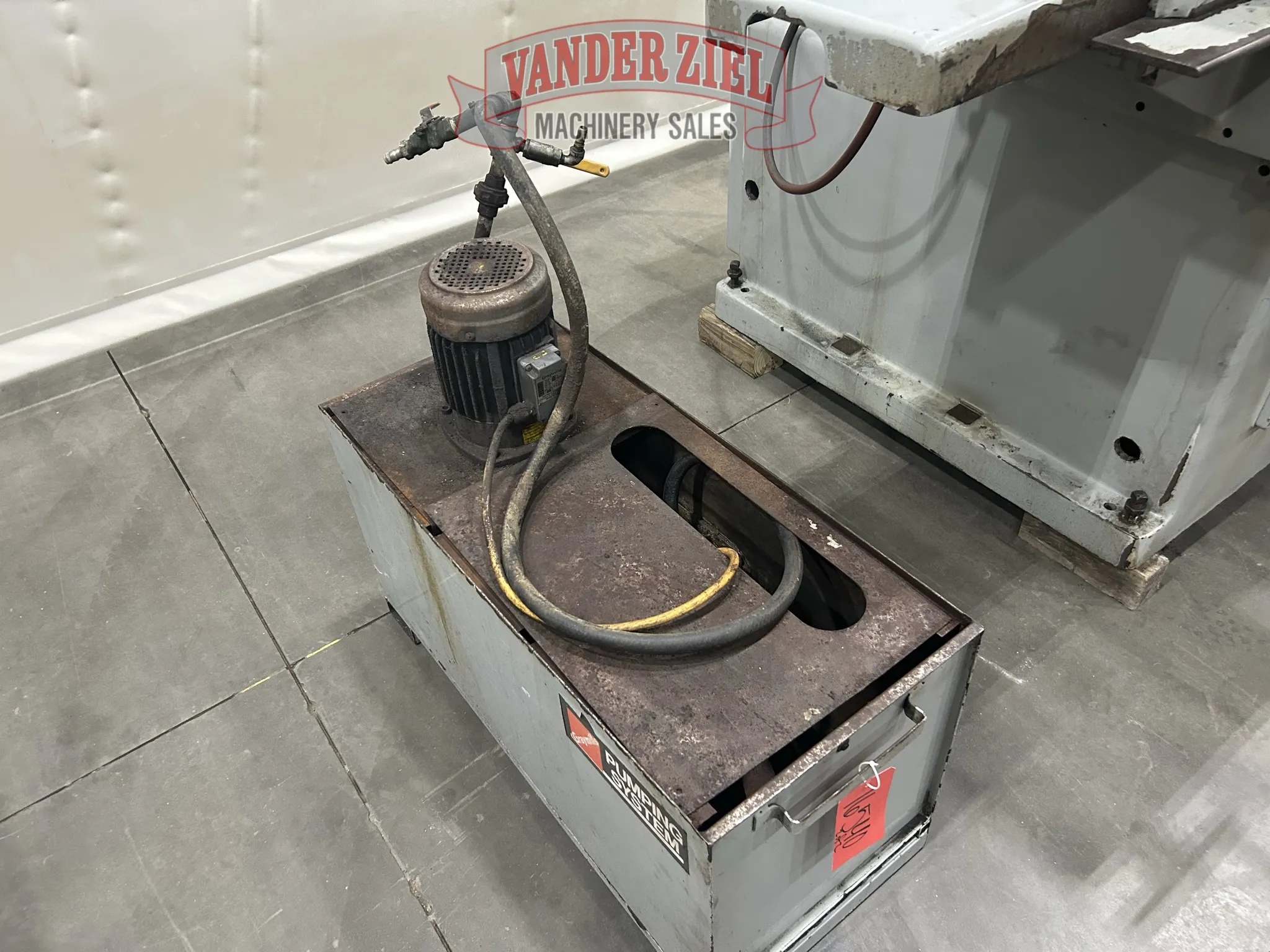

Standard hydraulic pump motor (1200 RPM) 1 1/2 Hp
Approx floor space 73"x110"
Approx weight 5200 lbs

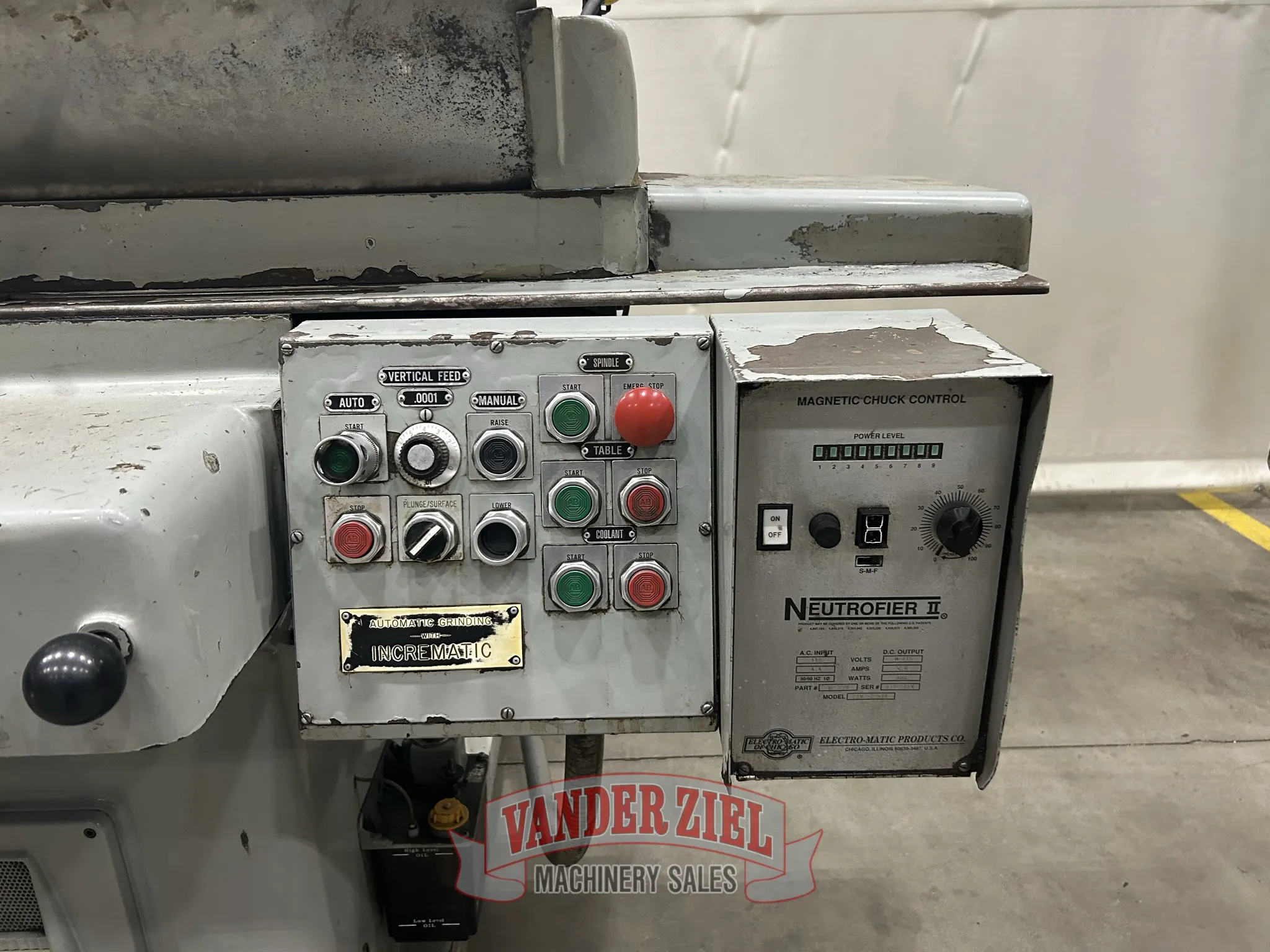

Grinder was rebuilt in 2021 by American machine Tool, Inc Down, equipped with variable chuck control, over wheel dresser, incremental downfeed and Neutrofier Chuck Control.

Preliminary Specifications - Subject to Verification

$38,709

Member Pricing
