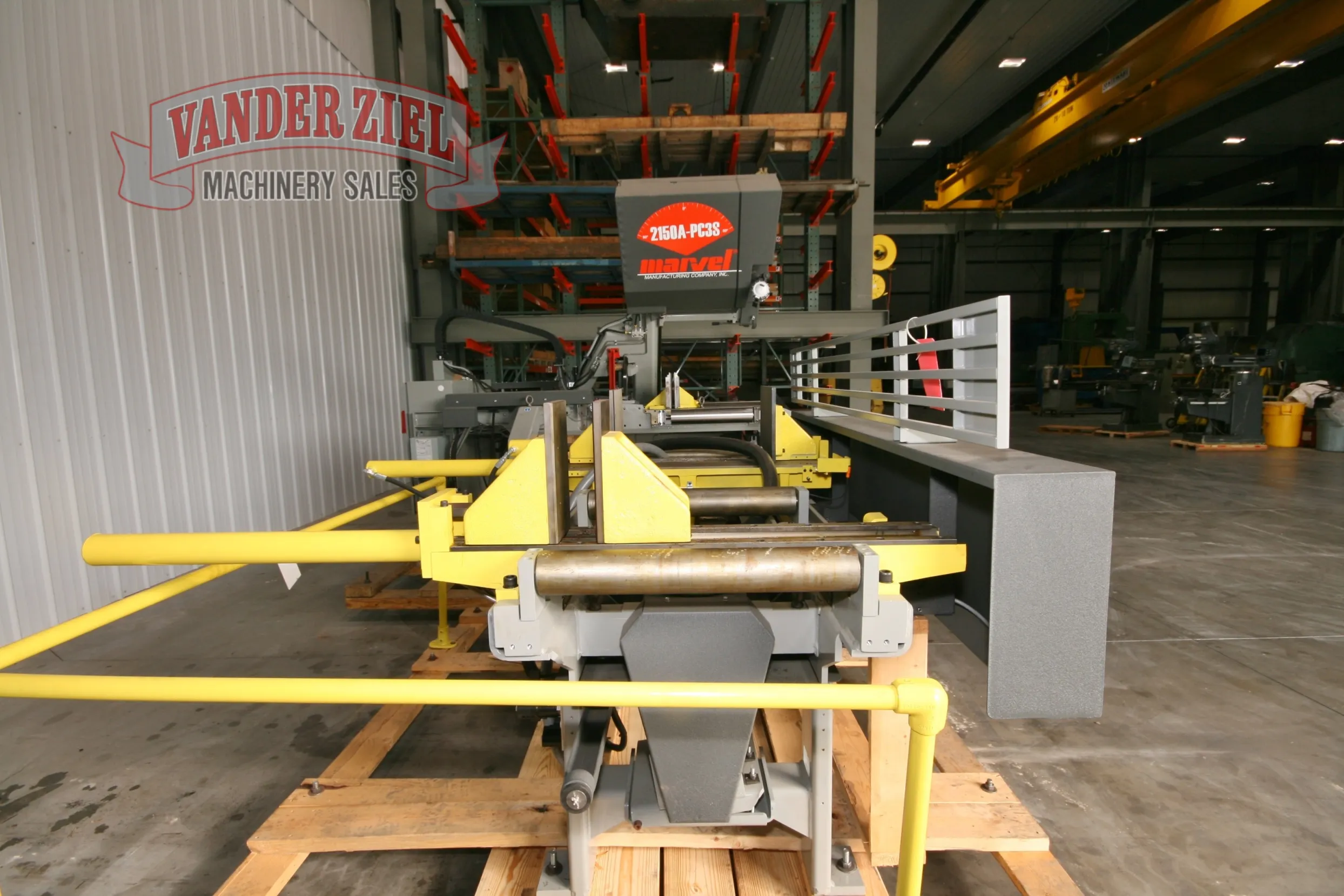

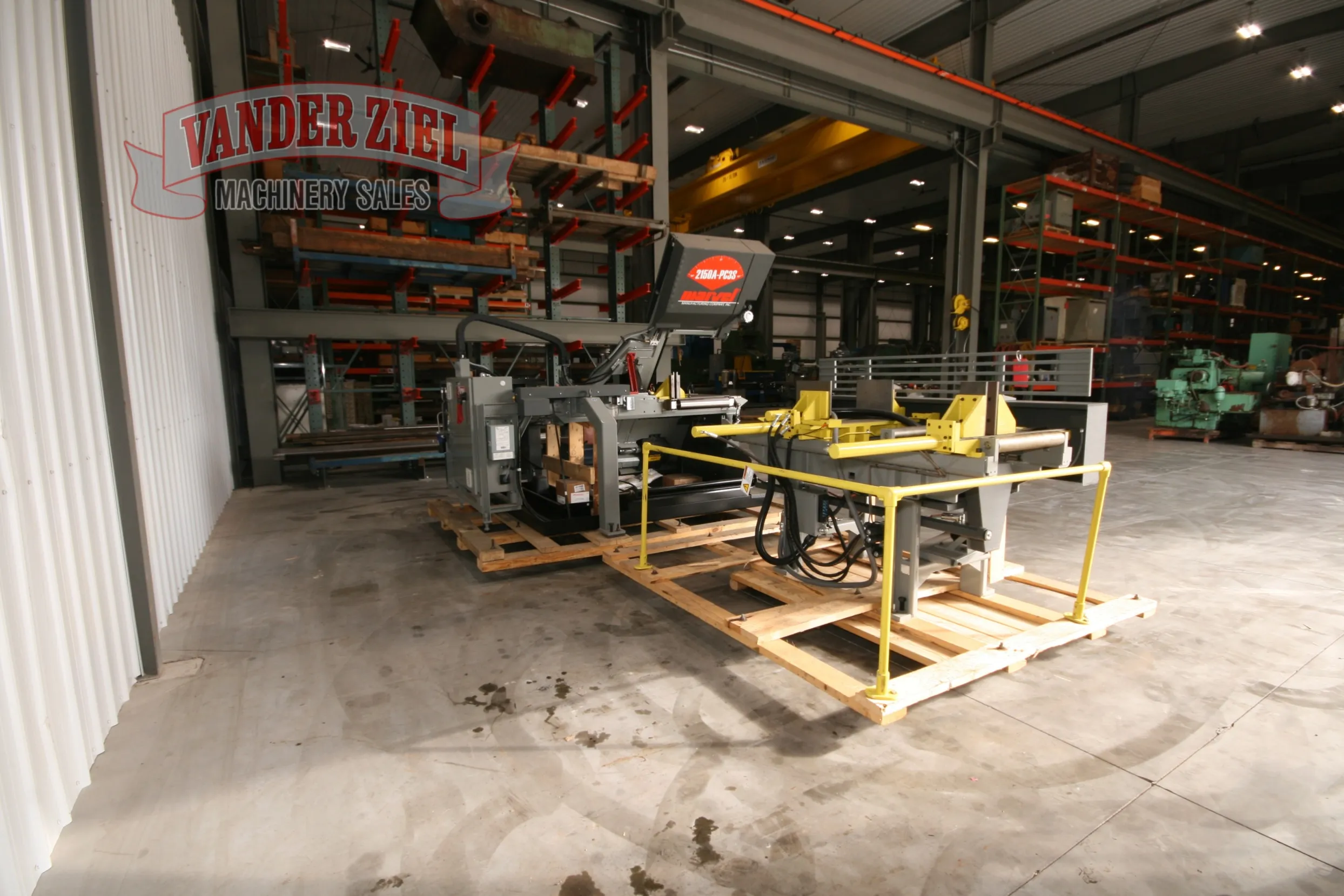

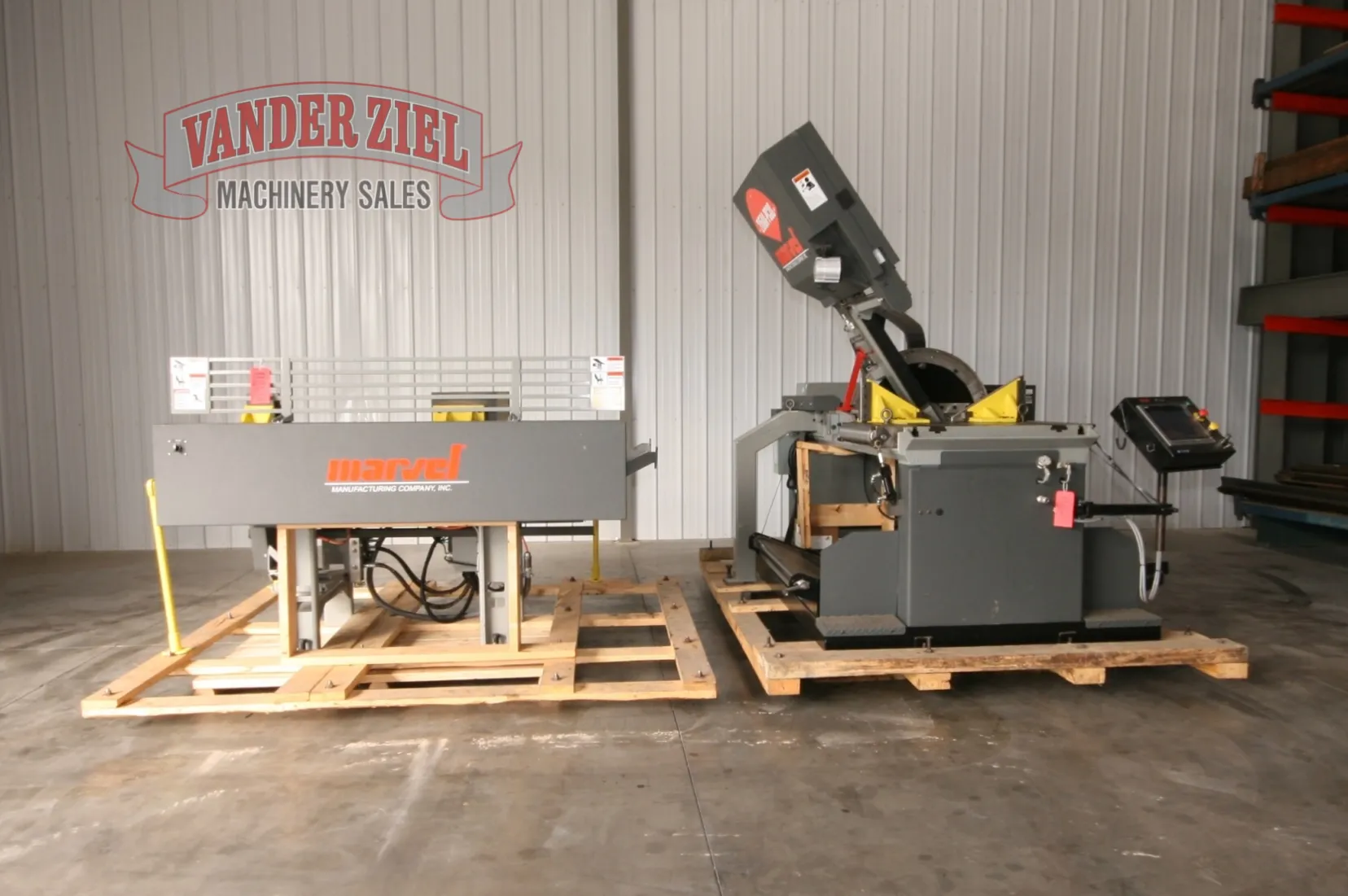

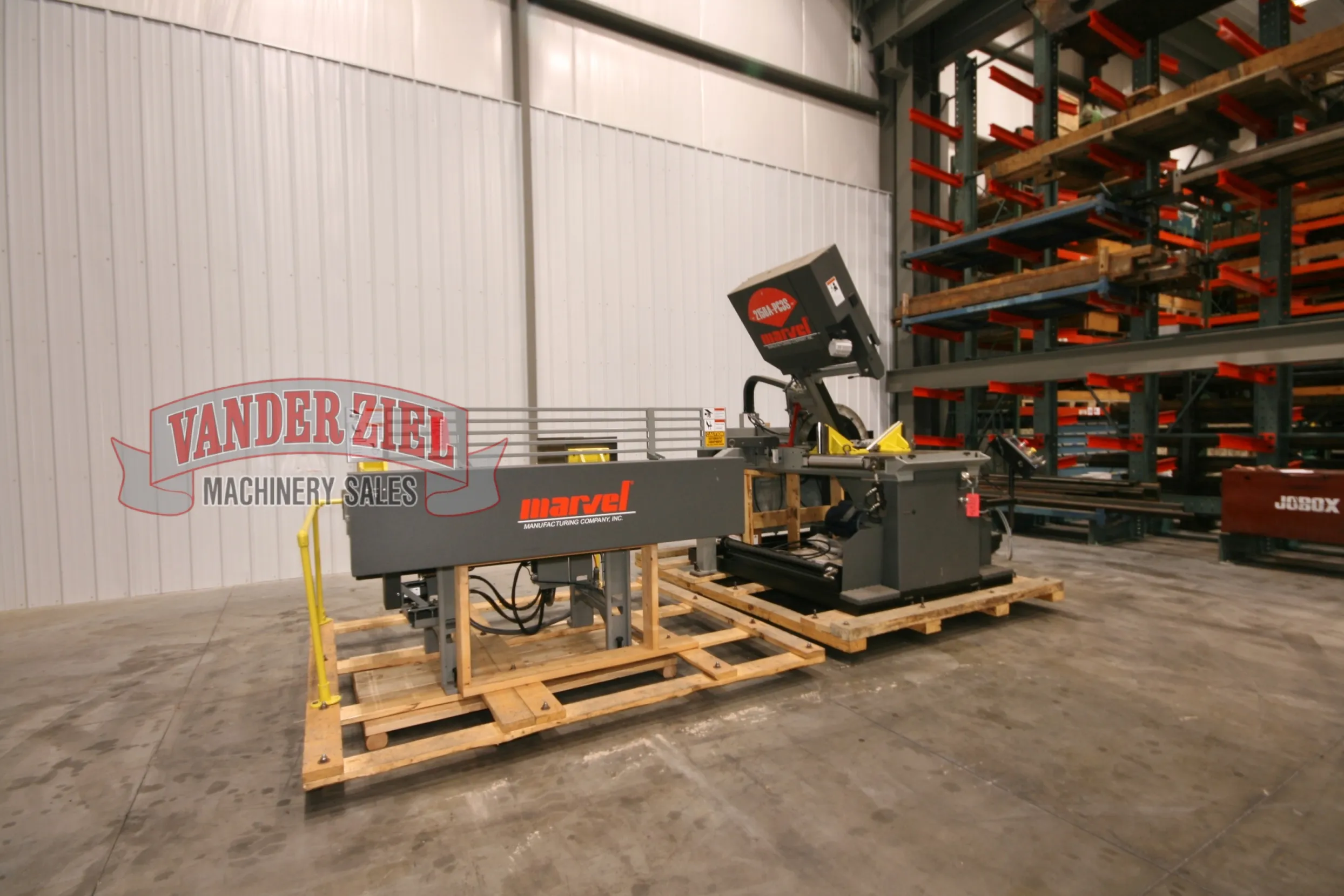

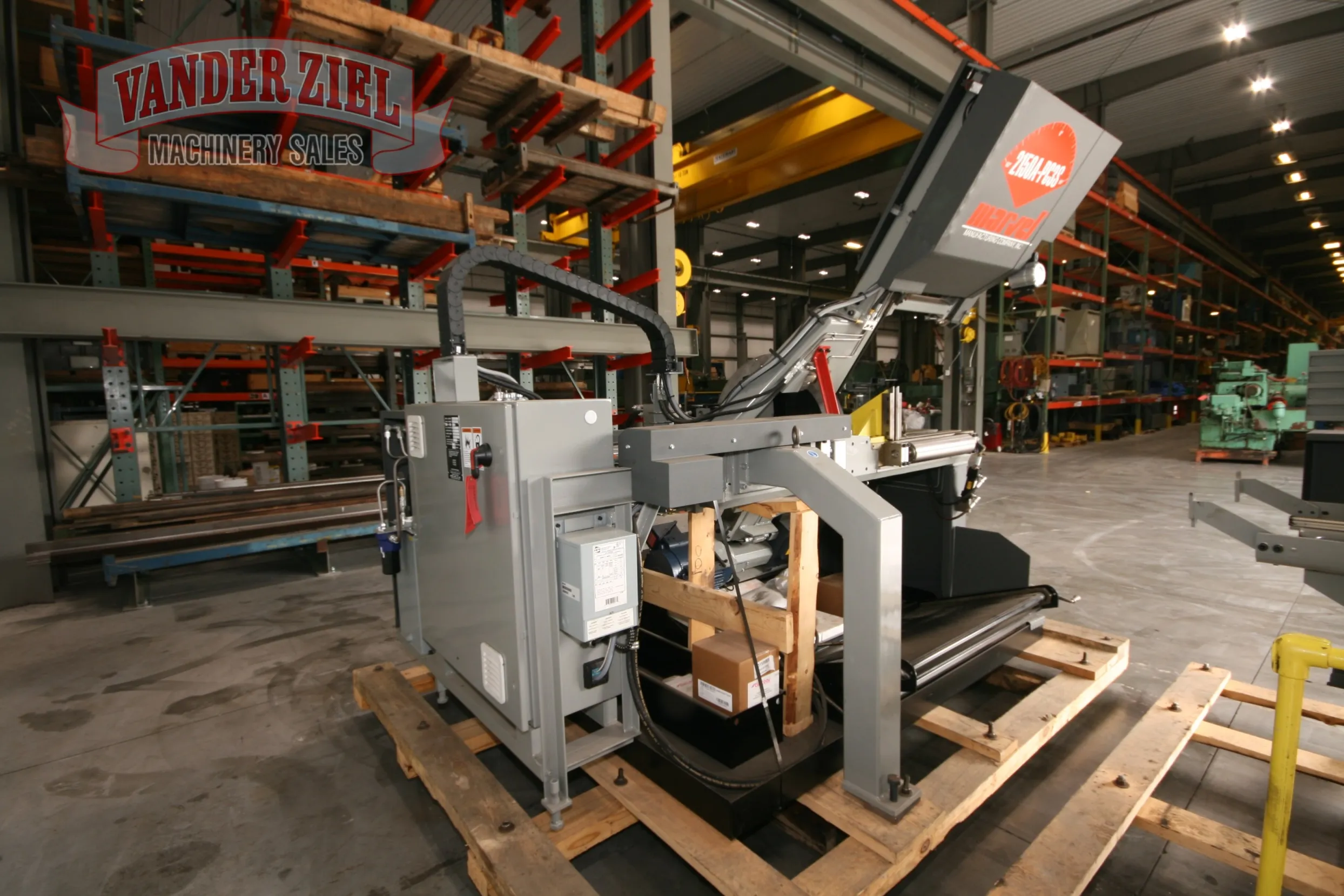

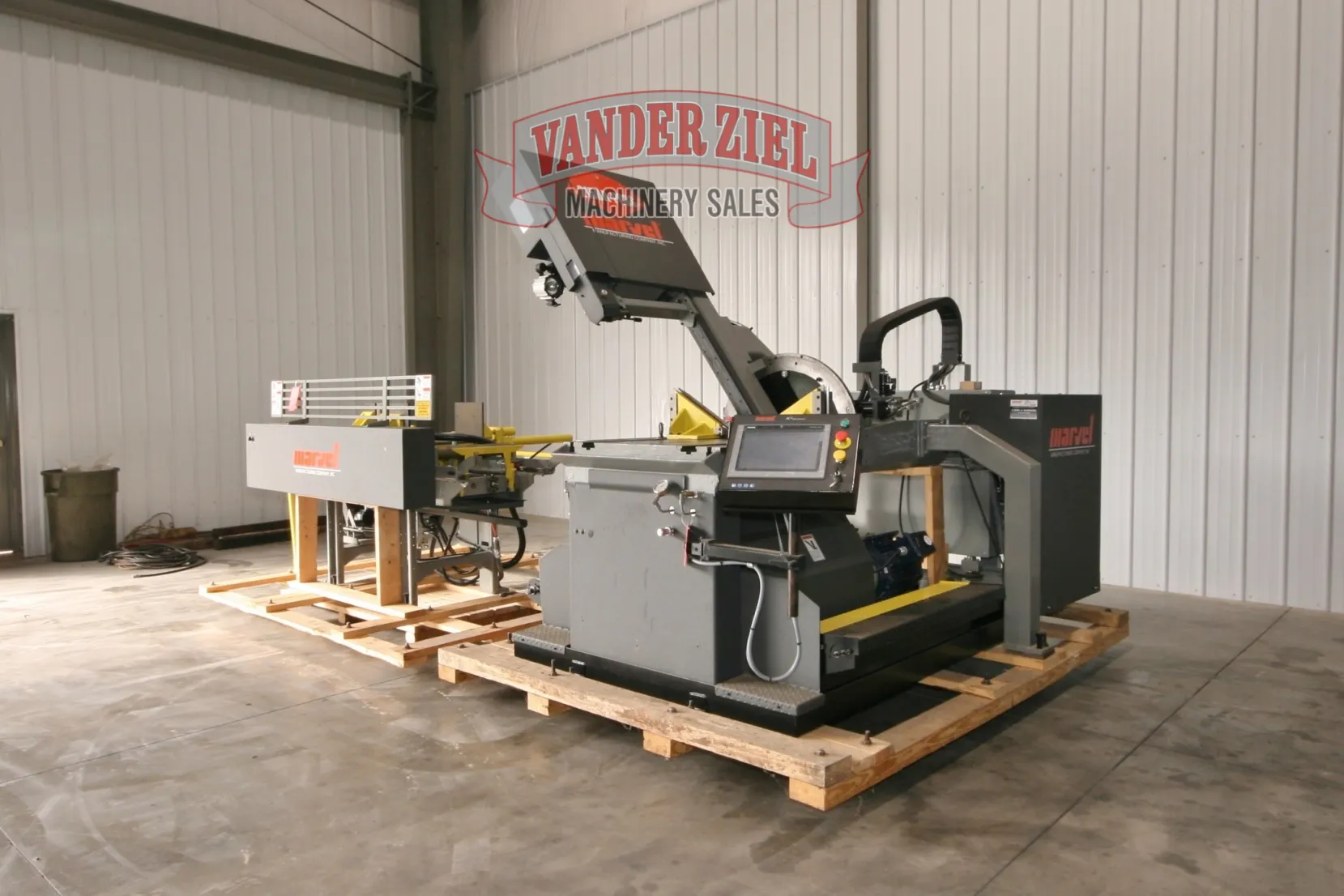

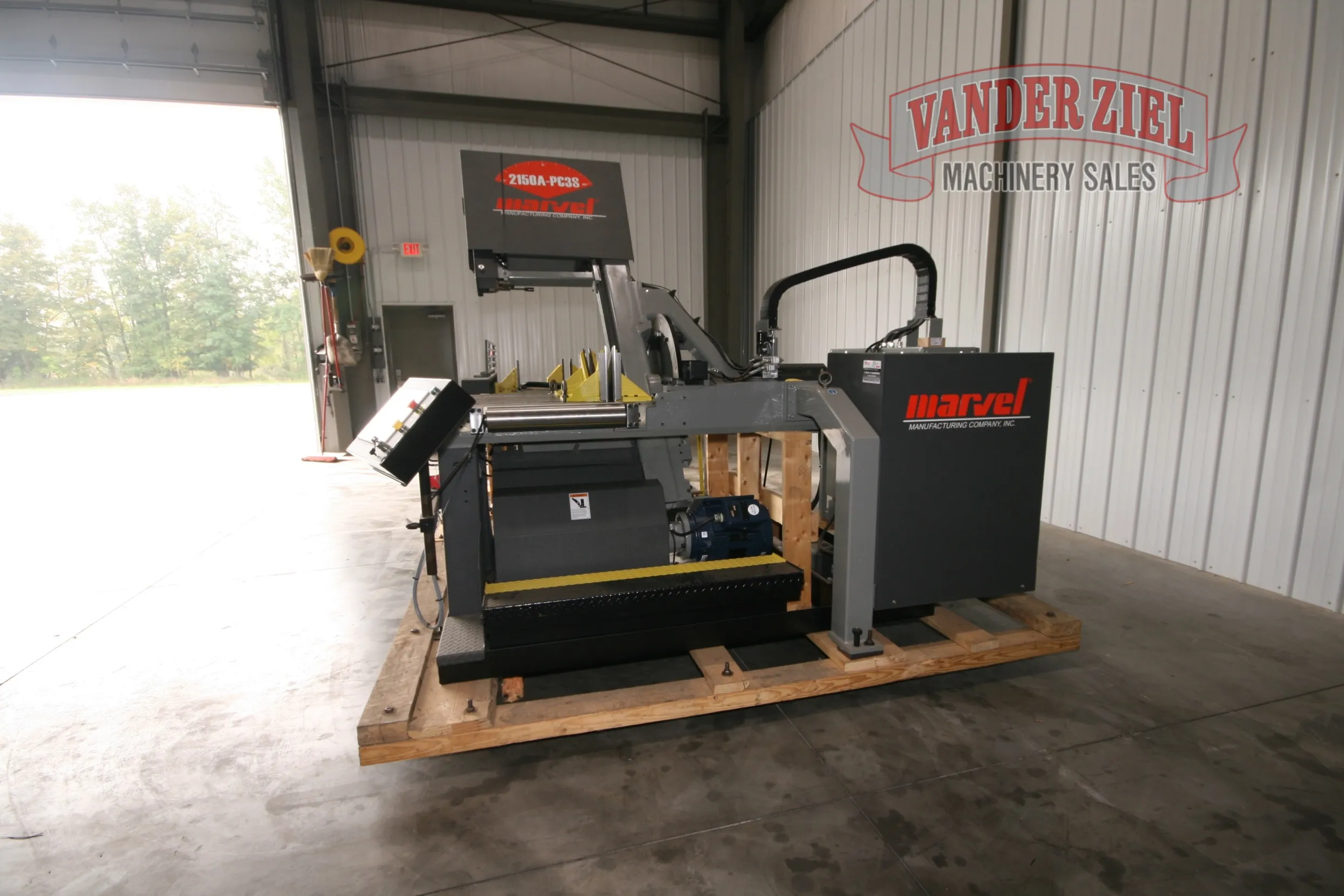

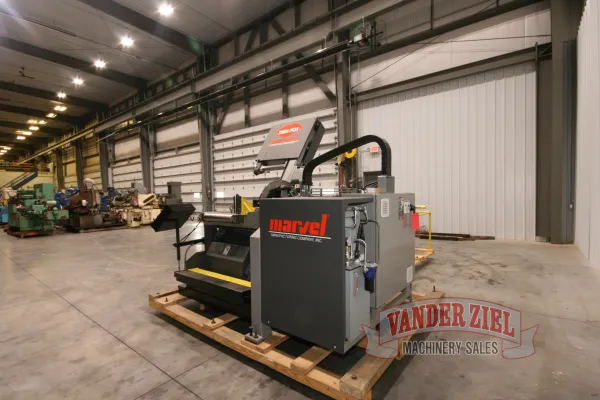

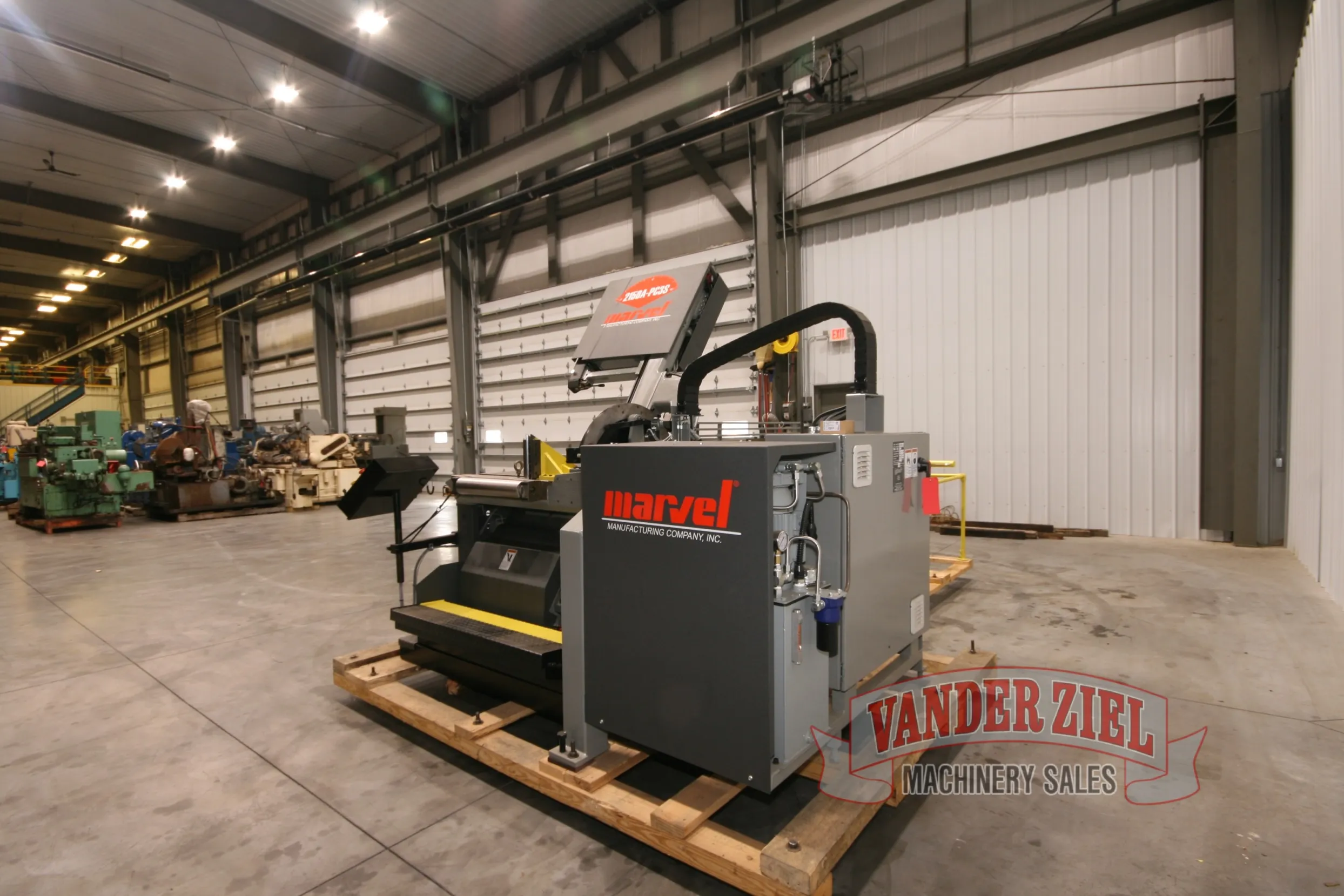

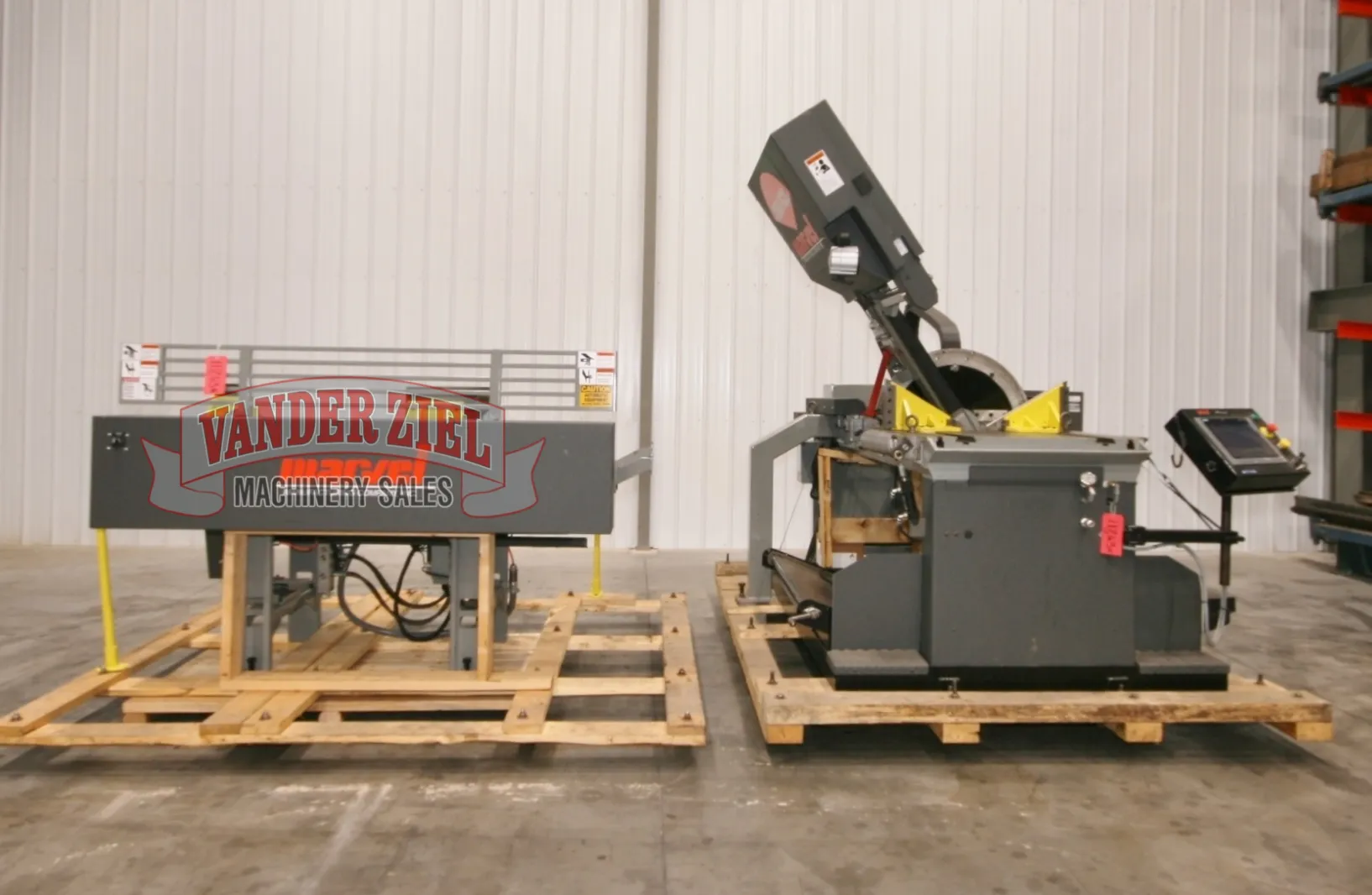

Marvel Model 2150A-PC3-60 Vertical Tilt-Frame Saw, 20" x 25" Capacity - NEW
Asset #17654
Included Options
M8 - Powered Chip Conveyor
M9A - Variable Vise Pressure
F4-Second Machine Vise
F8-Hydraulic Holddown
F8A-Hydraulic Holddown
ML2-Automatic Mist Lube
SGA1-Smart Guide Arm
F3-Outboard Vise on Shuttle
F12L+R- Work-Lift Roller on Left and right Side of Machine Bed
Additional Options can in Installed in the Field.
Specifications and Features
Capacity Rectangles Rounds
Nominal 20" x 25" (508 mm x 635 mm) 20" (508 mm)
Blade at 45o 20" x 17" (508 mm x 432 mm) 17" (432 mm)
Blade at 60o 20" x 11.25" (508 mm x 285 mm) 11.25" (285 mm)
Blade Drive: Electric with sensorless vector control for smooth acceleration and full torque.
Speed Range: Infinitely variable:
30 to 500 FPM (9 to 152 m/min), 10HP Standard
30 to 500 FPM (9 to 152 m/min), 10HP Optional (Modification M1)
Blade speed can be automatically set when material is selected.

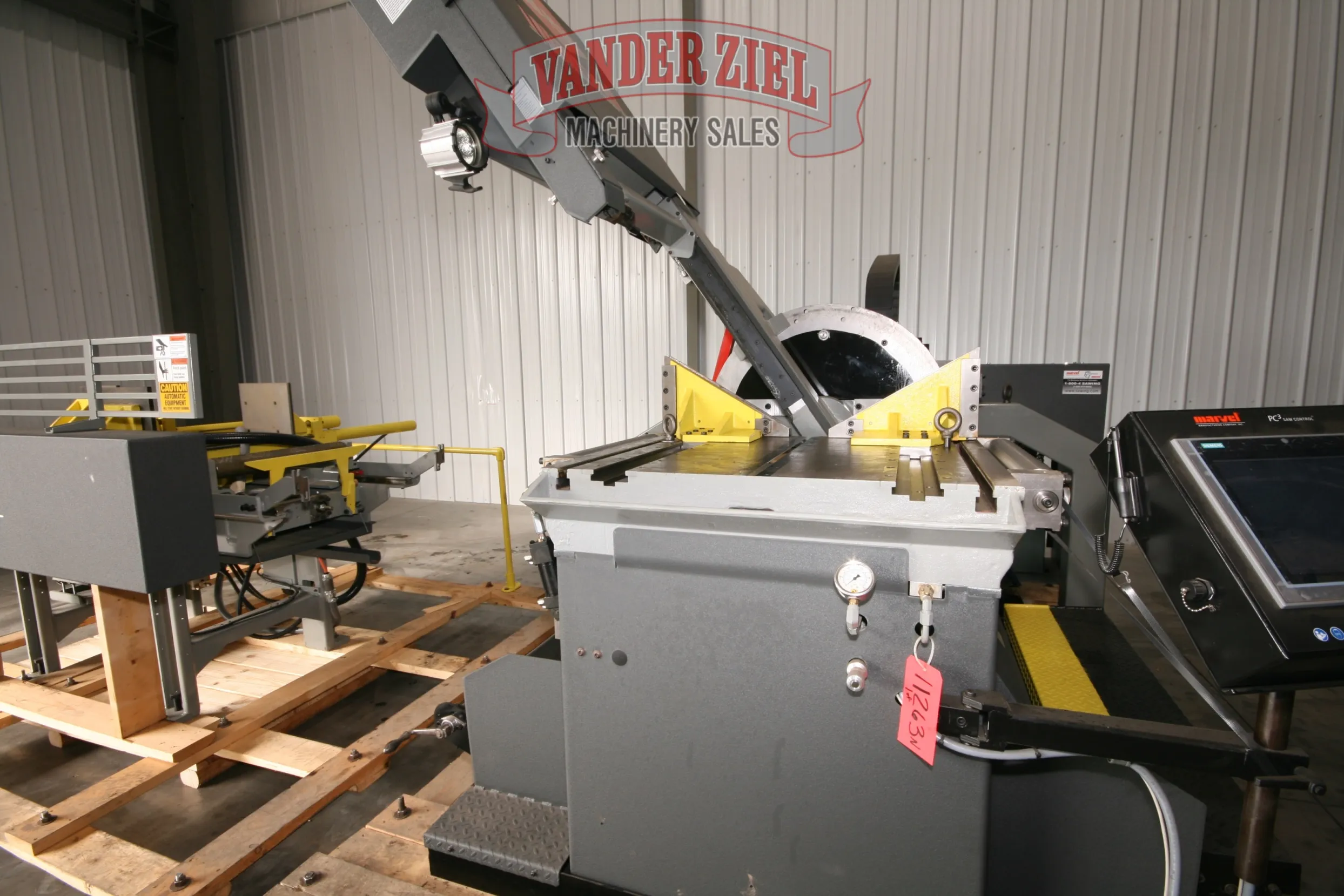

Tilting Column: For miter cutting up to 60o left and right of vertical. Hydraulically powered cam link design includes built in protractor with encoder feedback and MARVEL PC3 controller.
3° Canted Column: Standard 3-degree forward approach angle, for increased efficiency in cutting of structural materials. (Non Canted option available for $2,100.00 additional)
Feed Force: Direct Force Sensing Electric Ball Screw Feed which combines more consistent feed force with greater control, 0 - 350 lbs (0-1560 N), column travels on re-circulating linear ball ways. Feed pressure can be automatically set when material is selected, or adjusted manually using the PC3 touch screen.
Blade: 18′ 2" (5334 mm) long x 1.50" (32 mm) wide, .050" (1.07 mm). One Welded-Edge Band is furnished with each machine as part of standard Start-up supplies.
Blade Guides: Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self tensioning design.
Blade Tension: Hydraulically controlled, 45,000 psi. max. (310 MPa). Machine equipped with automatic blade break / blade stall shut off switch.
Upper Blade Guide Arm: Hydraulically positioned and locking, controlled using the PC3 touch screen.
Vises: Hydraulic, full stroking with 9-1/2" high x 15" wide 60o faceplates. Optional variable vise pressure available. (Option Code M9A).
Coolant System: Built-in with Flood system (60 Gallon Capacity), available with Drop Lubrication system (requires compressed air connection)(Option Codes ML1 & ML2), including chip pan with chip removal ramp (optional Manual or power Chip Conveyors available).
Work-Rest Rollers: Two turned ball bearing rollers, one on the entry side and one on the discharge side of the machine bed.
Flushing Hose: Washes away chips from hard-to-get-at places reducing clean-up time.

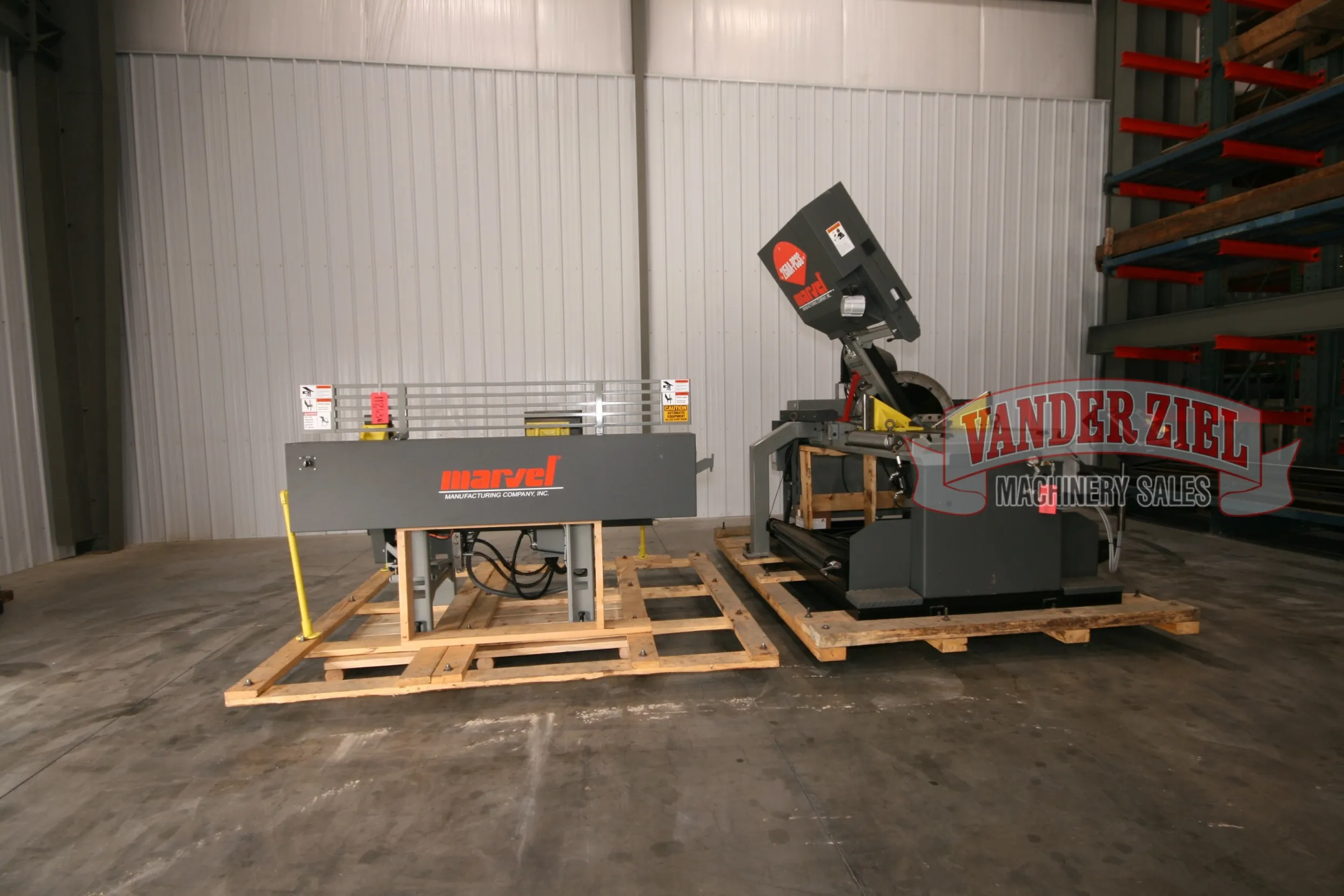

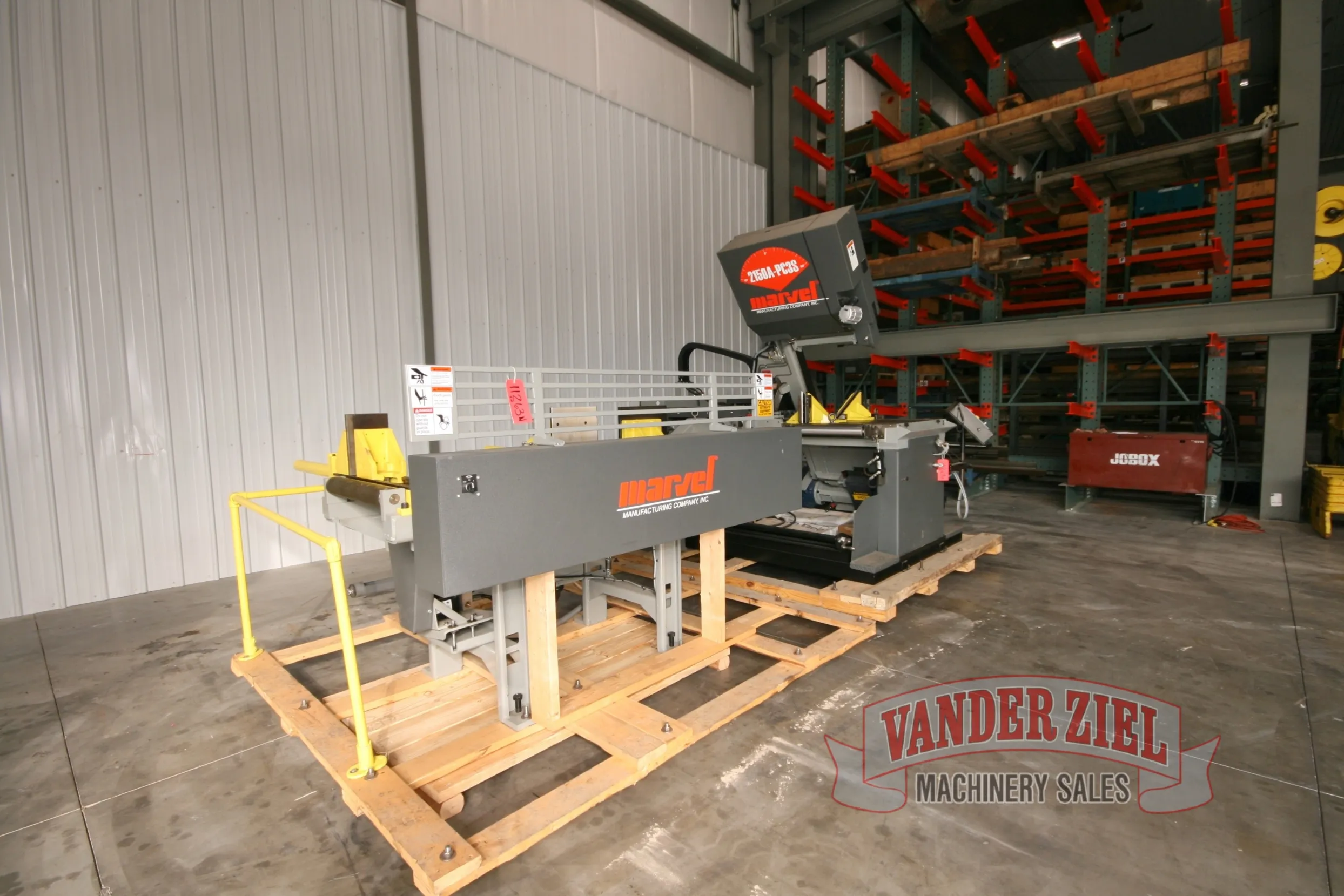

Automatic Bar Feed: The Automatic Bar Feed design features a 48" stroke length with indexing speeds of up to 60 ft./min., and creep speeds of 33 in../min. The bar feed vise is servo driven with encoder feedback, and combines precision double ball screws with preloaded recirculating linear guides, resulting in positioning accuracy of +/- .005" per index. The vise itself is hydraulically clamped to prevent material slippage. Optional outboard and second machine vises are available (must specify right or left hand machine configuration at the time of order - Option Codes F3 & F4).

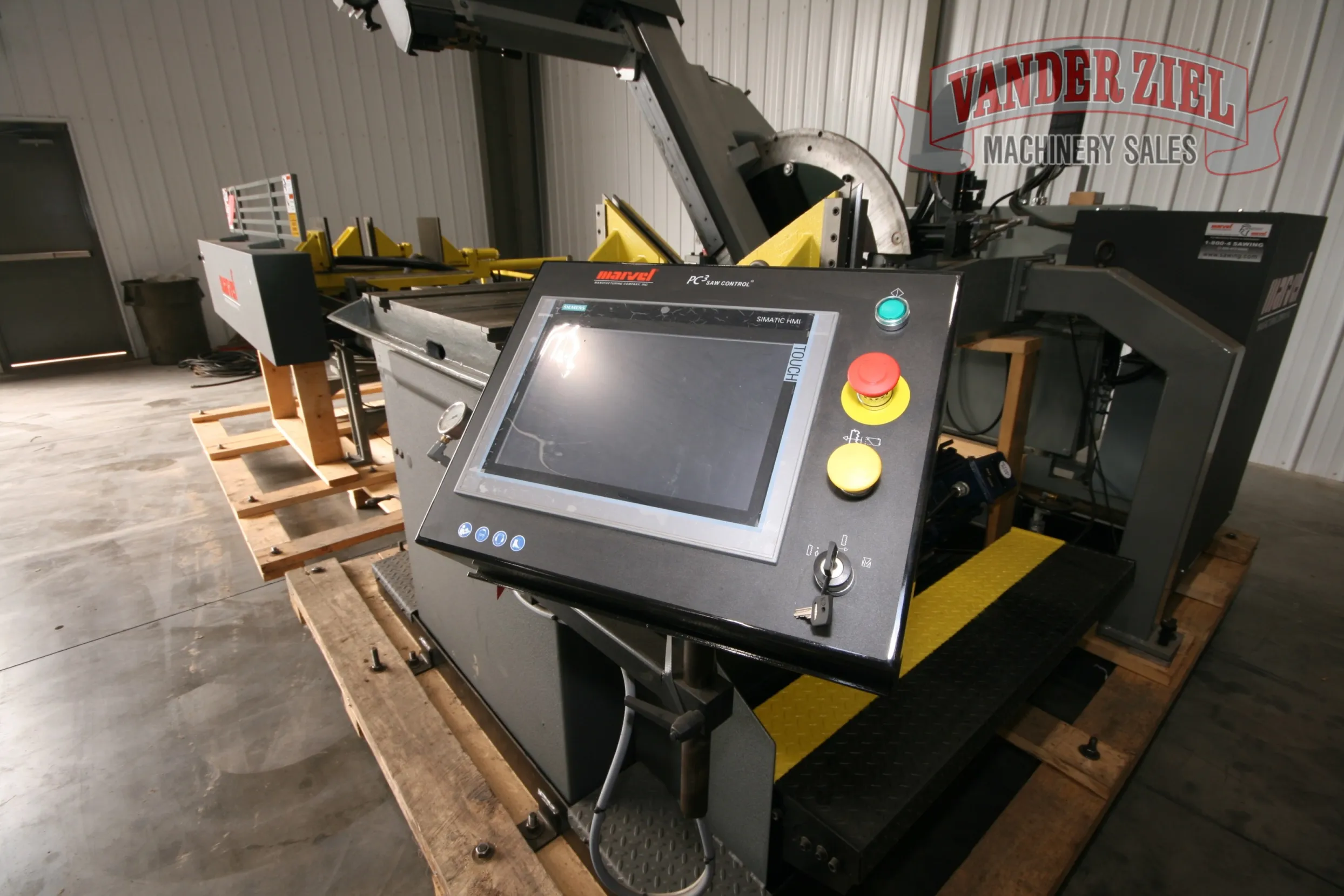

MARVEL PC3 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with a 12" color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library. Both blade speed and feed force are automatically set according to material type for optimal cutting performance. Job programming consists of setting the cut-off length, angle and number of pieces to be cut. Additional features include Inch/Metric capability, out-of-stock shut down device, a fast cut job option and expanded memory storage using removable media. Also includes Jammed Blade Protection that senses resistance as the column returns and stops motion to prevent blade damage.
Material can also be fed through the machine manually in both directions using the hydraulic shuttle vise. Blade can be stopped with all other power functions operative.
Standard Left-to-Right Work Entry: Opposite Hand or Right-to-Left work entry available (Modification M4A).
Motors: Main Drive: 7.5 H.P. (5.6 kW), Vector Duty Induction Motor TENV. (10 H.P. supplied with High-Speed Blade Option 2125PC/M1)
Coolant Pump: 1/8 H.P. (.1 kW), I.P. 54 Rating, totally enclosed motor built-in integrally.
Hydraulic Pump: 5 H.P. (3.7 kW), 1800 RPM, totally enclosed fan cooled, ball bearing, system pressure 1200 psi (6.2 MPa).
Controls: IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection. Power supply provides low voltage (24 volts DC) control to all push buttons at operator's control panel and machine lighting circuits. PLC control and drives mounted in moisture-tight compartment with vibration isolation mountings. Electrical Equipment conforms to National Electrical Code NFPA 79. The Electrical Control Panel is U.L. Labeled.
Notice: This quotation is based on the assumption that the end user's electrical power supply conforms to National
Electrical Code NFPA No. 79-2012, section 4.3 at the machine terminals. A copy of this section is available upon request.
Warning: Failure of the end user's electrical supply to conform to the above standard can hinder machine performance and may require the addition of extra cost components not included with the standard machine. Repair and replacement of components damaged as a result of an inadequate power supply are not covered by the manufacturer's warranty.
Standard Machine Color: Machine Tool Gray
Start-up supplies included with each machine:
Hydraulic Oil: 10 gallons (38 liters) in machine.
Cutting Fluid: 2 gallon (8 liters) soluble oil.
Bandsaw Blades: One (1) Welded-Edge Blade.
Manufacturer's Technical Data: Two (2) sets consisting of parts list, operating and maintenance instructions, installation plan, wiring, elementary electric and hydraulic diagrams, and electrical and hydraulic component list.
Shipping Weigh, base machine & Index tablet: 7,800lbs. (3,545 kg)
Voltage Requirements: Indicate the required voltage.
460 volt, 3 phase, 60 cycle (EK 3)
