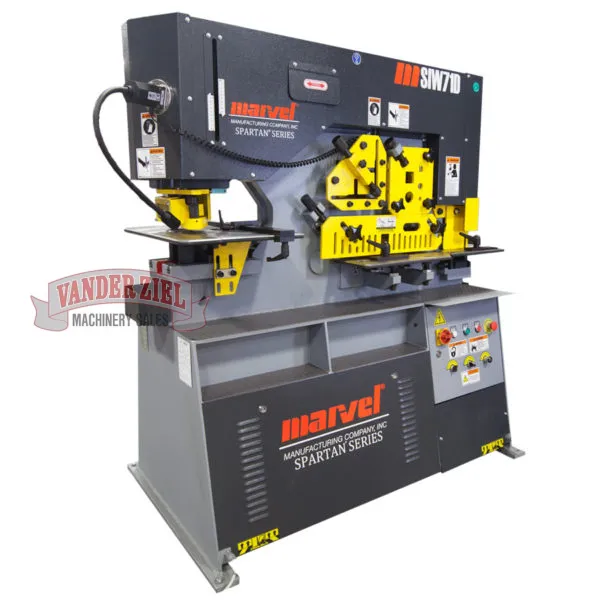

Marvel Spartan 71 Ton Ironworker, Model MSIW71D - NEW

Marvel Spartan 71 Ton Ironworker, Model MSI71D - NEW

SKU # 2310002

STANDARD SPARTAN MSIW71D HEAVY-DUTY, DUAL CYLINDER, COMPLETELY INTEGRATED IRONWORKER WITH 71 TON CAPACITY, 7-1/2 H.P., 12" THROAT, 5 WORK STATIONS, AND SIMULTANEOUS DUAL OPERATION

Capacities & Specifications Rated on 65,000 PSI Tensile

PUNCHINGPunch Pressure:  71 tons.Punch Holder and Jog ModePunch Work Table: Includes back gauge and adjustable stops.Adjustable See-Through Punch Stripper: For fast and easy setup.Die Holder:  Adjustable in machined T-slots for quick punch and die alignment.Standard Tooling:  1-1/2" in 9/16".CPD Series: 26 punch, 62 die.Large Tooling:  2" in 7/16"CPD Series: SP51P punch, SP80D die.Optional Oversize Tooling:  4-5/16" in 3/16" material.Throat Depth:  12"Stroke Length:  2-5/32".Cycles per Minute in 3/4":  25.Punching Station Work Height:  40-9/16" FLAT BAR SHEARING Flat Bar Shear Capacity:  14" in 5/8".Maximum Width x Thickness:  12" in 3/4".Lower Blade:  Four (4) usable edges.Support Table:  Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.Adjustable Hold-Down:  Holds work piece securely in position when shearing.Upper Shear Blade:  Provides for minimum distortion.  Two (2) usable edges.Blade Length:  15".Angle Flange Trim:  4".Flat Bar Shear Work Height:  35-1/2" ANGLE SHEARING Maximum Capacity - 90 degrees:  5" x 5" x 1/2".Maximum Capacity - 45 degrees:  2-1/2" x 2-1/2" x 3/8".Shearing with no material loss and minimum deformity.Shear Blades:  Four (4) usable edges.Angle Shear Work Height:  44-7/8".

BAR SHEARING Round Bar Max. Capacity:  1-3/4".Square Bar Max. Capacity:  1-3/4" x 1-3/4".Six Cavity Round and Square Bar Shear Sizes:  Round:   , 1/2", 1", 1-3/4"Square:   3/4", 1-3/4"Channel Shear Max. (optional):  5".I-Beam Shear Max. (optional):   5".Bar Shear Work Height:  44-7/8" NOTCHING Rectangular Notcher:  1-3/4" x 3-9/16" x 3/8".Electrical Interlock Safety GuardGauge Table with Stops:  For precise positioning.Notcher Work Height:  35-1/2". OTHER STANDARD EQUIPMENT Five (5) Sets of Punches and Dies:Punches:  9/16", 11/16", 13/16", 15/16", 1-1/16"Dies:  19/32", 23/32", 27/32", 31/32", 1-3/32"CPD Series:  26 punch, 62 die.Magnetic Base Work LightAdjustable Electric Back Gauge (36")24 Volt DC Control VoltageScrap Boxes at Punching and Notching StationsAdjustable Stroke Depth at PunchTwo (2) Full-Control Foot PedalsTwo (2) Hole Die HoldersTwo (2) Piece Gauging Table at Punch StationKeyed Punch Holder for Shaped ToolingStandard Voltage 230/460 Volt, 3 Phase, 60HzSingle Phase Machines:  Not Available.Machine Net Weight:  3520 lbsMachine Dimensions:  70" L x 39" W x 74" H3' Electric Back Gauge
