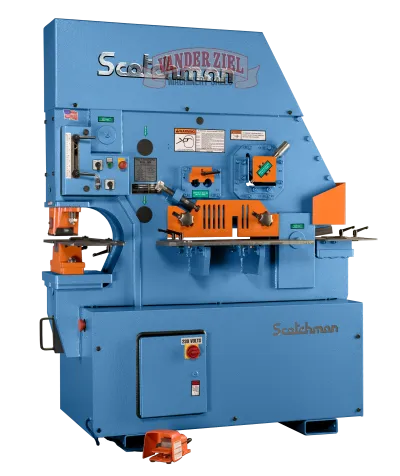

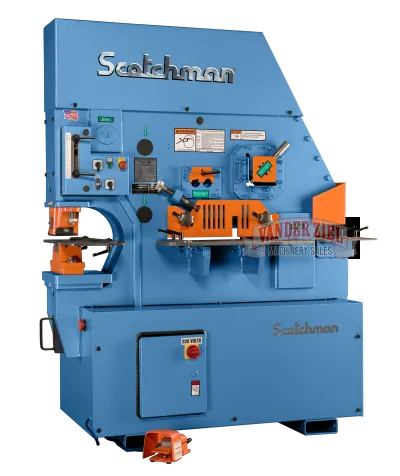

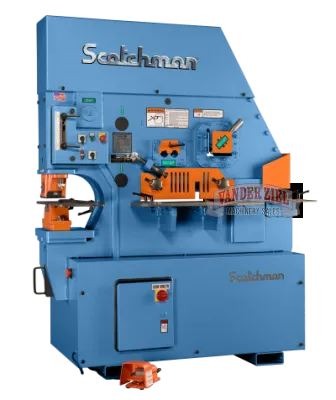

Scotchman 85 Ton Fully Integrated Ironworker, Model FI-8510-20M - NEW
Scotchman 85 Ton Fully Integrated Ironworker, Model FI-8510-20M - NEW
SKU # 3010007
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 85 ton1-1/16" in 1" |
| Special Tooling | 4" Max. Dia. |
| Throat Depth | 10" |
| Flat Bar Shear | 20" Length1" x 12"3/4" x 20" |
| Angle Shear 90° | 6" x 6" x 1/2" |
| 45° with Bar Shear | 4" x 4" x 1/2" |
| Brake 12" | 85 ton |
| Brake 24" | 85 ton |
| Open End Brake | Max. 1/4" x 5"Flat or Angle Iron |
| Pipe NotcherSchedule 40 I.D. | 3/4"1"1-1/4"1-1/2"2" |
| 90° V-Notcher | 6" x 6" x 5/16" |
| Rectangle Notcher90° V. Notch | 3" x 5" x 1/2"3" x 3" x 1/2" |
| Channel Shear | 2" to 6" Adj. |
| Strut Shear | Samples Required |
| Rod ShearRound RodSquare Rod | 1-1/2"1-1/4" |
| Square Tube Shear | 1/2" to 2"12 ga. |
| Picket Tool | 1/2"3/4"1"16 gauge |
| Offset Die Holder | Max. 40 ton |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] |
| Hydraulics | 2,600 psi |
| Motors Standard | 5 hp 3 ph230/460208/380/575 |
| Motors Optional | 5 hp 1 ph230v |
| Dimensions | W-30"L-67"H-77" |
| Shipping Weight | 4,554 lbs. |
REF: 000023
