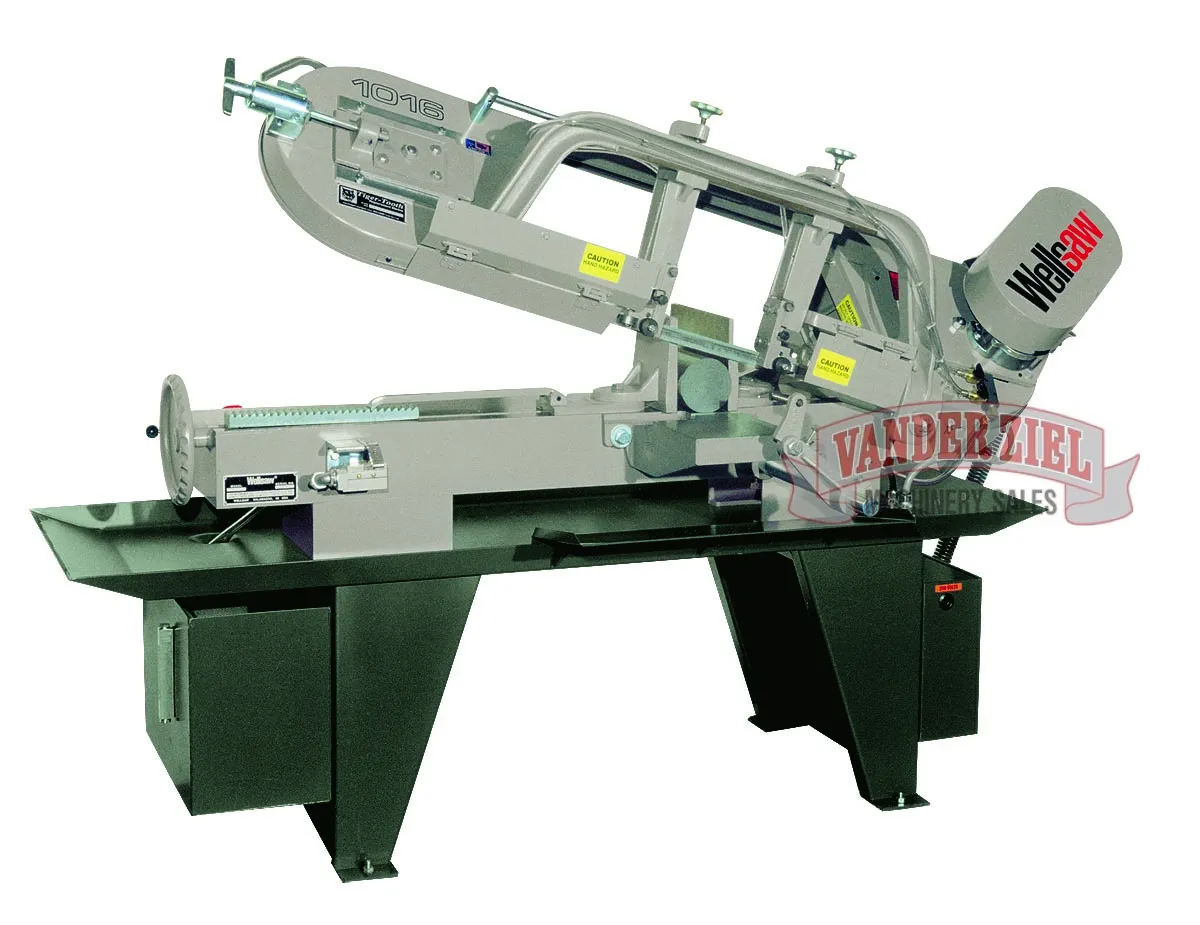

Wellsaw 10" x 16" Horizontal Saw, Model 1016 - NEW

Wellsaw 10" x 16" Horizontal Saw, Model 1016 - NEW

SKU#3920004

Specifications
Capacity
Round 10.5"
Flat 16.5"
Rectangular 10" x 16"
45º Angle 10" x 9"
Blade Size 1" x .035" x 11'6" (138")
Blade Speeds 50-100-175-275 SFPM
Blade Guides Carbide Guides with Rollers
Blade Tension Manual Rite-Tension®
Electrical Options 115-208-230/60/1 or
208-230-460/60/3
Coolant System Tank Capacity 8 Gallons
Submersible Pump 115V/
.6 Amp/170 GPH
Vise Control Quick Acting/Manual Screw
Swivel Vise To 45°
Feed Control Variable Hydraulic with
Counterbalance Spring
Band Wheels 15" Diameter Cast Iron
Bed Height 29"
Floor Area 40"W x 84"L
Shipping Weight 900 Lbs.

Standard Features
Spring-Loaded Carbide Guides with Rollers
Combination Reduction Gearbox and Perimeter Ring Gear
Blade Drive
2hp Baldor® Motor
Four Blade Speeds
Rite-Tension® Band Tensioning Device
Variable Hydraulic Downfeed Control
Flood Type Wet Cutting System
Rotary Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Bed
Quick Acting Vise
Positive Frame Lock
Adjustable Stock Stop/Back-Gauge
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up
