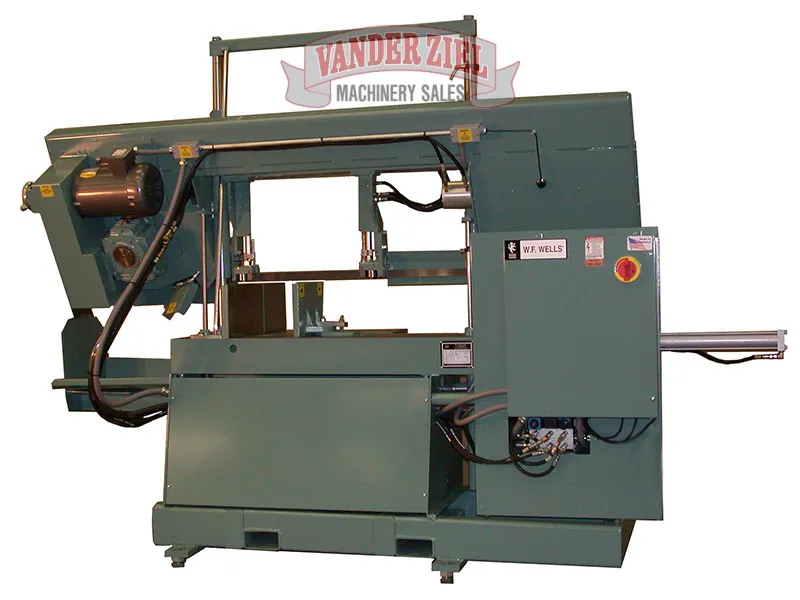

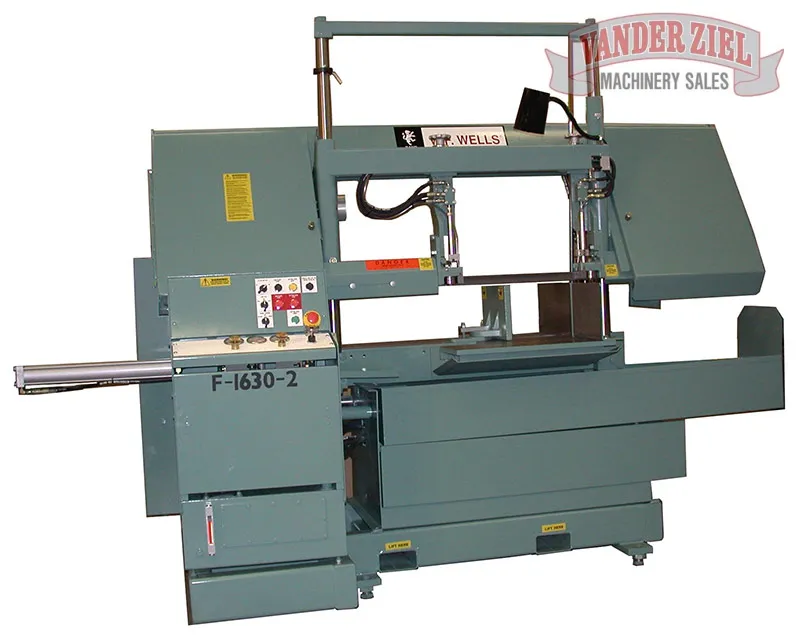

W.F. Wells 16" x 30" Semi-Automatic Horizontal Saw, Model F-1630-2 - NEW

W.F. Wells 16" x 30" Semi-Automatic Horizontal Saw, Model F-1630-2 - NEW

SKU#4020010

Machine Specifications

• Capacity: Rectangular at 90º 16" High x 30" Wide, Round at 90º 16" Diameter


• Rectangular at 45º 16" High X 13" Wide, Round at 45º 13" Diameter


• Weight Capacity: 5,000 lbs


• Blade Speed: 60-500 SFPM


• Blade Size: 1 1/4" X .042" X 16'8"


• Sawing Feed: Variable, Hydraulic


• Blade Guide: Rollers and Carbide Side Blocks


• Blade Tension: Hydraulic


• Bandwheel Size: 20"


• Vise: Hydraulic, Full Stroke, 8-1/2"


• Blade Drive: 7 1/2 HP, AC Vector Drive


• Sawing Force: 0-750 lbs


• Coolant Capacity: 15 Gallons


• Hydraulic Capacity: 20 Gallons


• Hydraulic Drive: 2 HP Motor


• Work Height: 35"


• Shipping Weight: 2,700 lbs


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Machine Dimensions: 118" Length x 52" Width x 88" Height
