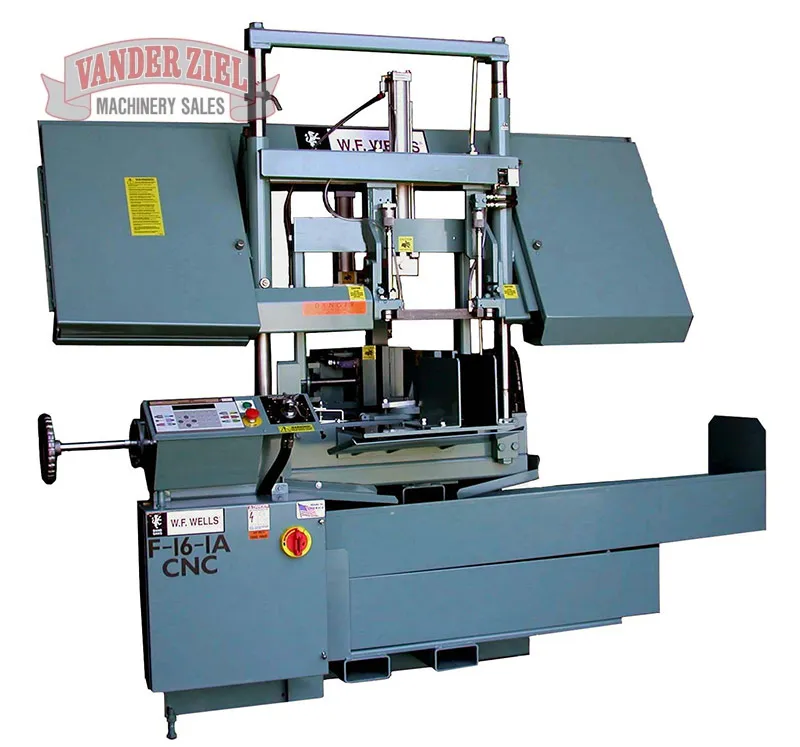

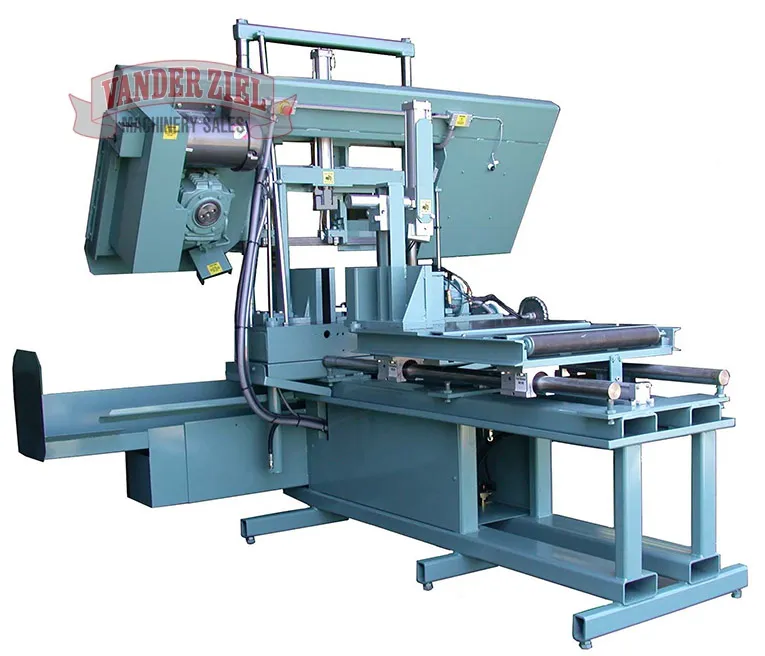

W.F. Wells 16" x 18" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model F-16-1A CNC - NEW

W.F. Wells 16" x 18" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model F-16-1A CNC - NEW

SKU#4020026

Machine Specifications

• Capacity: Rectangular at 90° 16" High x 18" Wide, Round 16" Diameter


• Weight Capacity: 5,000 lbs


• Blade Speed: 60-425 SFPM


• Blade Size: 1 1/4" X .042" X 15′


• Blade Guide: Roller Guides with Carbide Inserts


• Vise: Air, 8 1/2" High


• Bandwheel Size: 20"


• Blade Tension: Manual with Indicator


• Blade Drive: 7 1/2 HP Variable Speed, AC Vector


• Sawing Force: 30-120 lbs


• Coolant Capacity: 15 Gallons


• Hydraulic Capacity:  3/4 Gallon


• Hydraulic Drive:  3/4 HP Motor


• Work Height: 35"


• Barfeed Projection: Hydraulic 0-25" CNC Controlled


• Shuttle Indexes: Unlimited


• Projection Accuracy: +/-.002"


• Remnant End: 12"


• CNC Programmable Controller with Color Touch Screen


• Machine Diagnostics & Programming Prompting


• 99+ Job Selection


• Automatic Kerf Compensation


• Blade Break/Stall Switch


• Fork Lift Pockets in Base


• Tipoff Worktable: 19 1/2" Wide x 15 1/2" Deep


• Shipping Weight: 3,250 lbs


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Machine Dimensions: 93" Length x 90" Width x 86" Height
